Quick Details

  • Condition: New
  • Type: Suction Filter
  • Structure: Cartridge
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: TianRui
  • Model Number: PHA060
  • Power(W): filter housing
  • Weight: 5.2KG
  • Dimension(L*W*H): 85*338mm
  • Certification: ISO9001:2008
  • Warranty: 12 months
  • After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details carton/wooden or as your request
Delivery Time 7 days after received payment

                                       High quality  PHA 060 high pressure hydraulic oil filter strainer



Product Description

 filter cartridge material

1.Composite of kapok fiber

2.finalize the design paper

3.stainless steel sintered felt

4.stainless steel woven mesh.

It is installed in the hydraulic pressure system to filter solid particle and slimes in medium and effectively

control cleanliness.

Its configuration and connect form convenient for other hydraulic pressure element integration assemblage.

Differential pressure indicator and by-pass valve can be assembled according to actual requirement.

technical data



working medium Mineral oil, emulsion, water glycol, phosphate hydraulic fluid (kapok shaping filter paper applies only to mineral oil)
Operating temperature -25~110 degree
working pressure(max)42Mpa
Transmission, transmission is differential pressure 0.5Mpa
The by-pass valve opening differential pressure

0.6Mpa

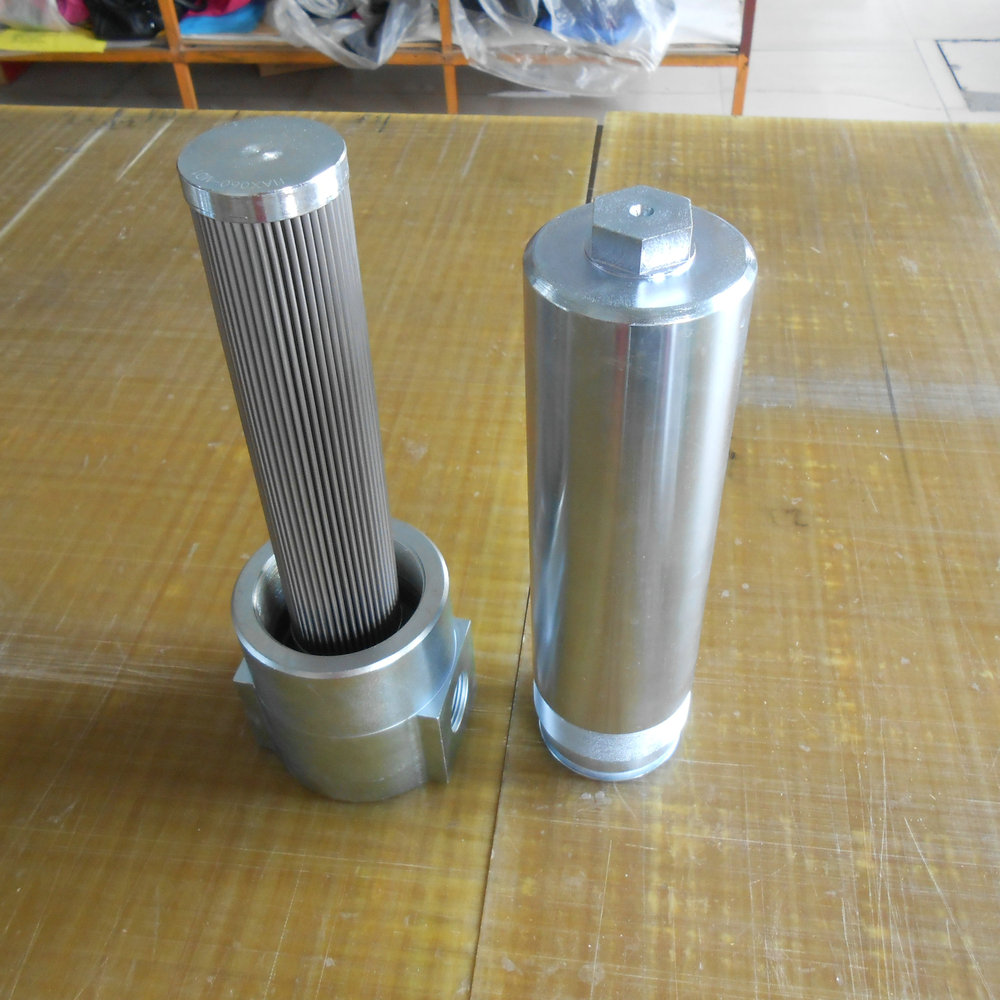

Detailed Images





 Drawings and size







size

A

H

H1

H2

L

L1

L2

B

G

weight

PHA020

G1/2  NPT1/2  M22×1.5

G3/4  NPT3/4  M27×2

208

165

142

85

46

12.5

M8

100

4.4

PHA030

238

195

172

4.6

PHA060

338

295

272

5.2

PHA110

G3/4  NPT3/4  M27×2

G1    NPT1    M33×2

269

226

193

107

65

---

M8

6.6

PHA160

360

317

284

8.2

PHA240

G1    NPT1    M33×2

G1″ NPT1″ M42×2

G1″ NPT1″ M48×2

287

244

200

143

77

43

M10

11

PHA330

379

336

292

13.9

PHA420

499

456

412

18.4

PHA660

600

557

513

22.1



more filter housing

1,    Low Pressure Fuel Filter -RYL,RYLA Series

2,    Pressure Line Filter -YPH Series

3,    Pressure Line Filter -PHA/B/C/D

4,    Pressure Line Filter -YPM Series

5,    Pressure Line Filter -PMA Series

6,    Low Pressure Return Filter -YPL Series

7,    Low Pressure Line Filter -PLA Series

8,    Tank Suction Filter -WU Series

9,   The core pulling  pressure line filter-FMQ series

If you need pressure line filter, following data need to be noted:

A.Working media.

B.Working flow .

C.Working pressure.

D.Filtration rating

Proper line strainer will be suggested to you or design according to your request.

other related filter housing



Company Information

We Xinxiang Tianrui Hydraulic Equipent Co.,Ltd are filters manufacturer located in Xinxiang City, Henan Province,China.

We have More than 10 years experience in filtration industry,malinly products are replacement filter element  & high/low pressure filter& locomotive filter & oil purifier , Widely used in aviation, aerospace, railway, mining machinery, metallurgy, chemical industry, machinery manufacturing, etc .Already get ISO9001: 2008 certification.

company advantage

uSpeciallists for industrial filters for almost 10 years,widely used  in power  plant,Steel plant,Coal Mining, Construction Mining etc.

OEM Service for hydraulic filters or other types of industrial filters.

Manufacture as you request.

Samples and small order are allowed.

Perfect after-sale service team and any mistakes will be charged by us.

Certifications



Customer visiting



Packaging & Shipping



contact

If you need filter element and filter housing,

Contact me please!
