PHA420FV1HI Hydraulic oil filter housing

FOB Reference Price:Get Latest Price
US $10-100 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Press Filter
Structure:
Cartridge
Place of Origin:
Henan, China (Mainland)
Brand Name:
TR
Model Number:
PHA420FV1HI
Power(W):
no
Weight:
18.4kg
Dimension(L*W*H):
499 *140mm
Certification:
ISO 9001:2008
Warranty:
6 Months
After-sales Service Provided:
Overseas service center available
Operating medium:
mineral oil, emulsion, water-glycol, phosphate esteR
Operating pressure (max):
21MPa
Operating temperature:
-25℃~110℃
Indicating pressure drop:
0. 5MPa
By-pass valve unlocking pressure:
0.6MPa
SupplyAbility
SupplyAbility:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Cartons or according to the customers' requirement
Port
Tianjin, Shanghai,Hongkong or as your request
Lead Time :
7 working days after payment

PHA420FV1HI Hydraulic oil filter housing



1)   DESCRIPTION



 It is installed in the hydraulic pressure system to filter solid particle and slimes in medium and effectively control cleanliness.

Differential pressure indicator and by-pass valve can be assembled according to actual requirement.

Filter element adopts many kinds of materials, such as inorganic fiber,

Resin-impregnated paper, stainless steel sinter fiber web, stainless steel wire mesh.

Filter vessel is cast in aluminum and has small volume, small weight, compact construction and nice looking figure.



2)   TECHNICAL DATA



Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)

Operating pressure (max): 11MPa       Operating temperature: -25°C~110°C

Indicating pressure drop: 0. 5MPa      By-pass valve unlocking pressure: 0.6MPa





7) COMPANY INTRODUCTION



We are a filter and filter element manufacturer for more than 10 years located in Xinxiang city, Henan province. Quality first is the ultimate purpose of our company. We are willing to cooperate with domestic and foreign customers, to provide you with the highest quality products and perfect service! If you need, warmly welcome to contact me.

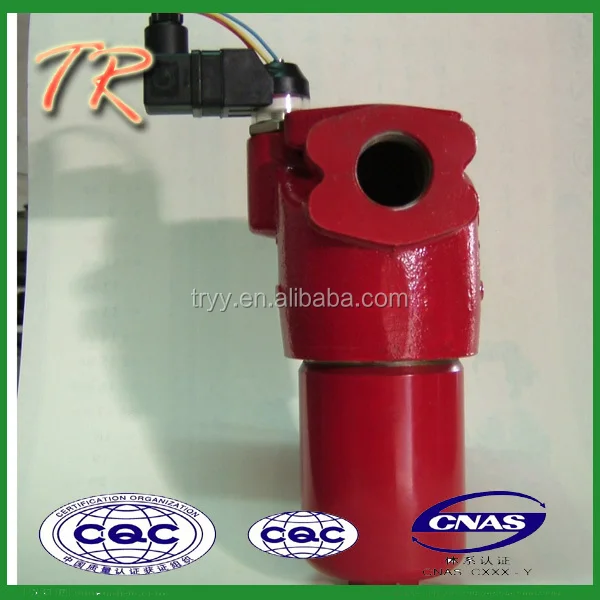

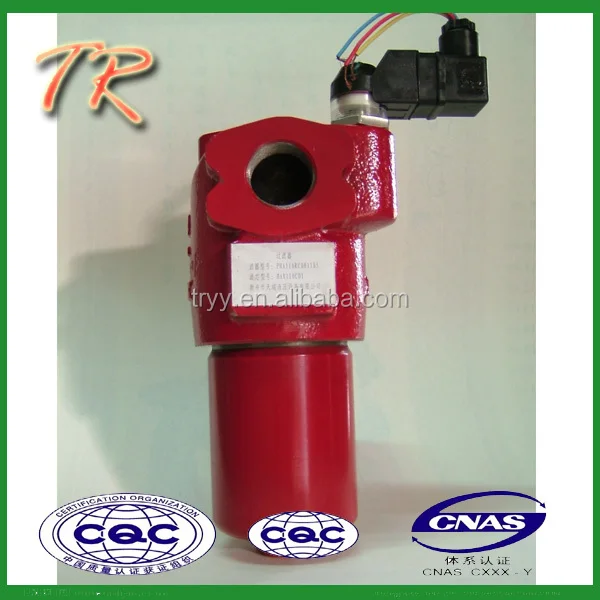

8) PRODUCT SHOW
