YPM 160 hydraulic Low pressure main Line filter used in pipe

FOB Reference Price:Get Latest Price
US $20-300 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Press Filter
Structure:
Cartridge
Place of Origin:
Henan, China (Mainland)
Brand Name:
TR
Model Number:
YPM- 160
Power(W):
none
Weight:
1~5kg
Dimension(L*W*H):
can be customzed
Certification:
ISO9001:2008
Warranty:
12 months
After-sales Service Provided:
Overseas service center available
Appearence:
nice
Operating pressure (max):
21MPa
Operating temperature:
- 25℃~110℃
Indicating pressure drop:
0. 5MPa
By-pass valve unlocking pressure:
0.6MPa
Precision:
6um
Filtrate media:
Wire mesh
Flow rates:
240L/min
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Cartons or according to the customers requirements.
Port
Tianjin, Shanghai , Ningbo or as your request
Lead Time :
According to the contact.

YPM series hydraulic Low pressure main Line filter used in pipe



1)   DESCRIPTION



It is installed in the hydraulic pressure system to filter solid particle and slimes in medium and effectively control cleanliness.

Differential pressure indicator and by-pass valve can be assembled according to actual requirement.

Filter element adopts many kinds of materials, such as inorganic fiber,

Resin-impregnated paper, stainless steel sinter fiber web, stainless steel wire mesh.

Filter vessel is cast in aluminum and has small volume, small weight, compact construction and nice looking figure.



2)   TECHNICAL DATA



Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)

Operating pressure (max): 21MPa       Operating temperature:- 25°C~110°C

Indicating pressure drop: 0. 5MPa      By-pass valve unlocking pressure: 0.6MPa



Type

A

H

H1

H2

L

L1

L2

B

C

Weight(Kg)

PMA030…

G1/2 NPT1/2

M22.5X1.5

157

133

129

76

64

17

Φ6.5

60

0.65

PMA060…

244

133

216

0.85

PMA110…

G1

NPT1

M33X2

242

140

184

115

95

25

Φ8.5

1.1

PMA160…

298

140

240

1.3



3)  COMPANY INTRODUCTION



We are a filter and filter element manufacturer for more than 10 years located in Xinxiang city, Henan province. Quality first is the ultimate purpose of our company. We are willing to cooperate with domestic and foreign customers, to provide you with the highest quality products and perfect service! If you need, warmly welcome to contact me.

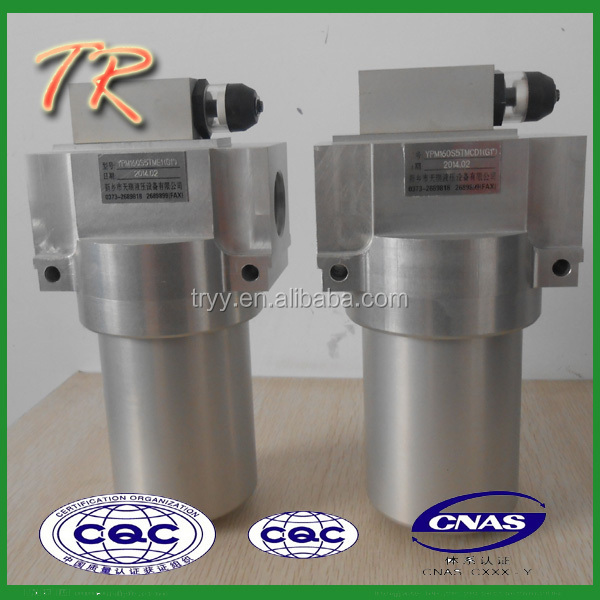

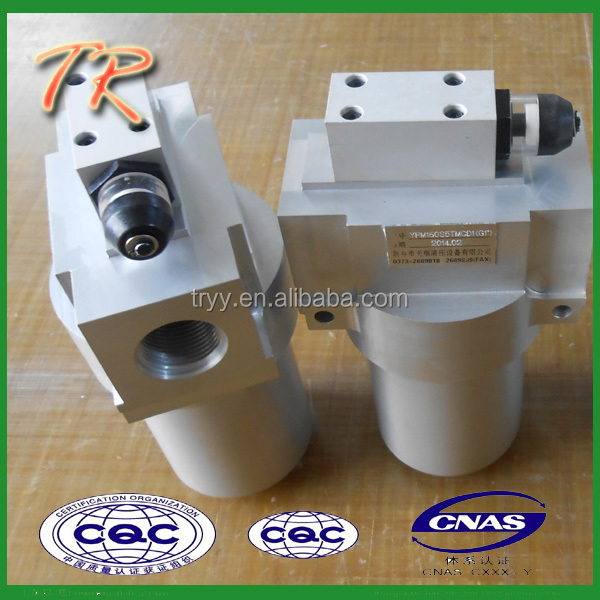

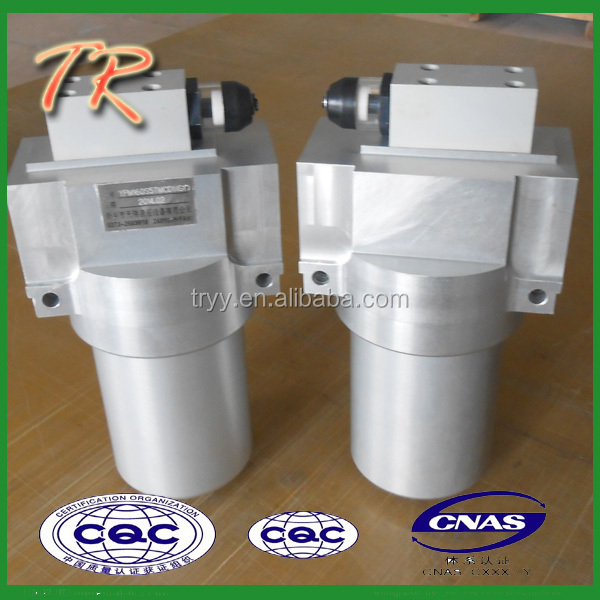

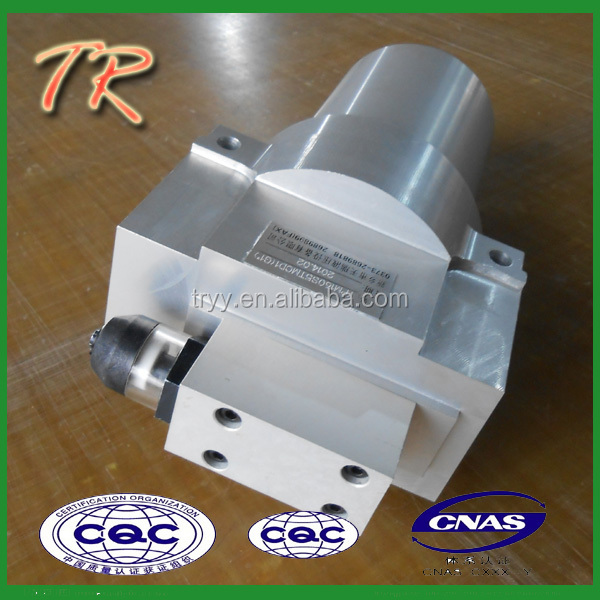

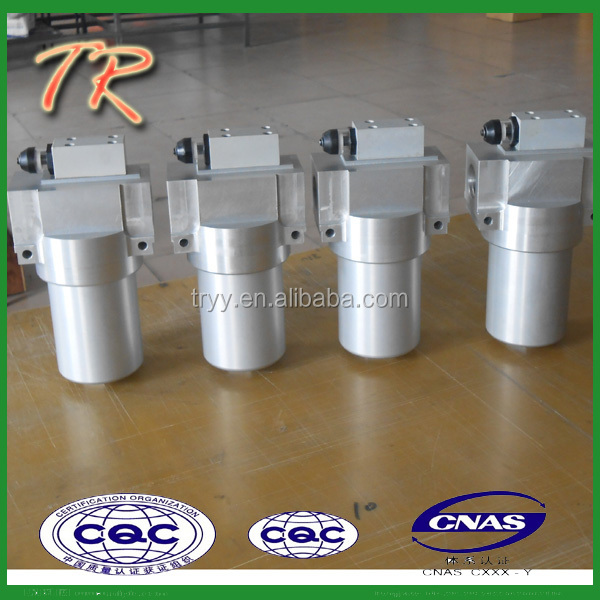

4) PRODUCT SHOW



DSCN5162 .jpg



DSCN5165 .jpg



DSCN5172 .jpg



DSCN5191 .jpg



DSCN5197 .jpg

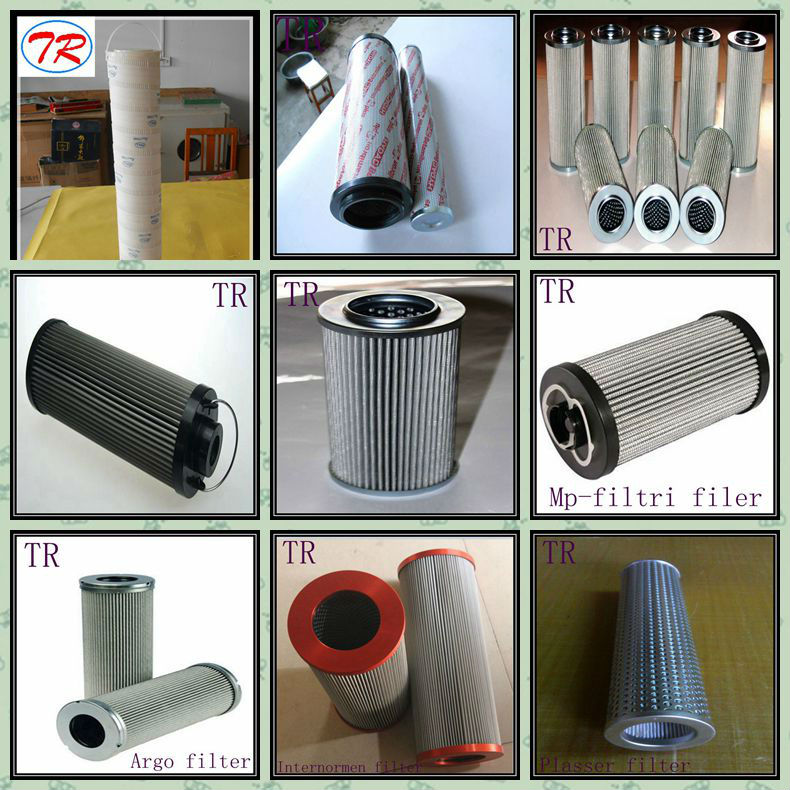

5) OTHER PRODUCT



TR Filter



6) TRANSPORTATION



transportation  .jpg
