Quick Details

  • Condition: New
  • Type: Press Filter
  • Structure: Cartridge
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: TR
  • Model Number: YPH110E7MC2B7
  • Power(W): no
  • Weight: according to size and material
  • Dimension(L*W*H): can be customized
  • Certification: ISO9001:2008
  • Warranty: 6 months
  • After-sales Service Provided: Overseas service center available
  • Capacity: filter solid particle and slimes
  • material: Inorganic fibers
  • application: hydraulic pressure system
  • Figure: nice
  • Operating medium: mineral oil, emulsion, water-glycol, phosphate ester
  • Operating pressure (max): 42MPa
  • Operating temperature: - 25℃~110℃
  • Indicating pressure drop: 0. 7MPa
  • Micron: 5um
  • Flow rates: 110L/min

Packaging & Delivery

Packaging Details Cartons/ wooden case or according to customers requirements.
Delivery Time 7 working days after payment or according to the contract.

Pressure line filter YPH110E7MC2B7 manufactured in China



1) DESCRIPTION



It is installed in the hydraulic pressure system to filter solid particle and slimes in medium and effectively control cleanliness.

Differential pressure indicator can be as Pressure line filter YPH110E7MC2B7 manufactured in China sembled according to actual requirement.

Filter element adopts many kinds of materials, such as inorganic fiber, resin-impregnated paper, stainless steel sinter fiber web, stainless steel wire mesh.

Filter vessel is made of high quality steel and has nice looking figure.



2) TECHNICAL DATA



Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)

Operating pressure (max): 42MPa

Operating temperature:- 25°C~110°C

Indicating pressure drop: 0. 7MPa



3) CLEANING FILTER ELEMENT COLLAPSE PRESSURE UNDER RATING FLOW RATES

(UNIT:1×105 Pa  Medium parameters:30cst   0.86kg/dm3)



Type

Housing

Filter element

FT

FC

FD

FV

CD

CV

RC

RD

MD

MV

YPH060…

0.38

0.92

0.67

0.48

0.38

0.51

0.39

0.51

0.46

0.63

0.47

YPH110…

0.95

0.89

0.67

0.50

0.37

0.50

0.38

0.55

0.50

0.62

0.46

YPH160…

1.52

0.83

0.69

0.50

0.37

0.50.

0.38

0.54

0.49

0.63

0.47

YPH240…

0.36

0.86

0.65

0.49

0.37

0.50

0.38

0.48

0.45

0.61

0.45

YPH330…

0.58

0.86

0.65

0.49

0.36

0.49

0.39

0.49

0.45

0.61

0.45

YPH420…

1.05

0.82

0.66

0.49

0.38

0.49

0.38

0.48

0.48

0.63

0.47

YPH660…

1.56

0.85

0.65

0.48

0.38

0.50

0.39

0.49

0.48

0.63

0.47





Type

A

H

H1

H2

L

L1

L2

B

G

Weight(kg)

YPH060…

G1

NPT1

284

211

169

120

60

60

M12

100

4.7

YPH110…

320

247

205

5.8

YPH160…

380

307

265

7.9

YPH240…

G1 ″

NPT1 ″

338

265

215

138

85

64

M14

16.3

YPH330…

398

325

275

19.8

YPH420…

468

395

345

23.9

YPH660…

548

475

425

28.6



 4) Company introduction



We are a filter and filter element manufacturer for more than 10 years located in Xinxiang city, Henan province. Quality first is the ultimate purpose of our company. We are willing to cooperate with domestic and foreign customers, to provide you with the highest quality products and perfect service! If you need, warmly welcome to contact me.



5) Advantage





ADVANTAGE

Contact us

Quality:

High quality ensure

MP:

+8613383801968



Price:

Competitive price and high sense of responsibility

TEL:

+8603732689818

Material:

From abroad or Hangzhou

ADD:

Xinxiang, Henan Province, China

Quantity:

Large capacity with advanced production equipment

FAX:

+8603732689899

Delivery time:

7work days after the payment

Website:



http://tryy.en.alibaba.com/

After service:

12 months

Standard:

OEM, ODM





6) Product show

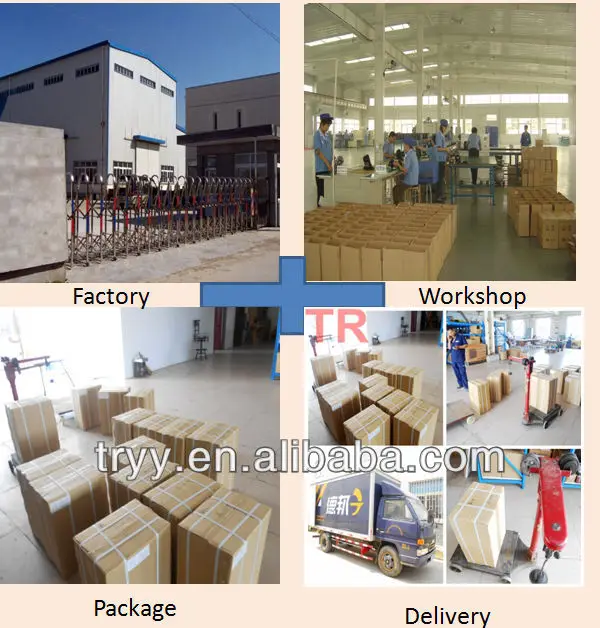

7)Transportation and Packaging









Pictures can't show all the products we produce, any kind of filter element or filter you need can be produced,





Sales promotions::



1. Welcome to visit our company,If you need,we will send an invitation for you......



2. If you come to  xinxiang ,we will pick you up by luxury car at xinzheng airport



when you arrive .
