Aluminum hydraulic in line oil filter housing YPM420

FOB Reference Price:Get Latest Price
US $50-320 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Press Filter
Structure:
Cartridge
Place of Origin:
Henan, China (Mainland)
Brand Name:
TR
Model Number:
YPM-420
Power(W):
none
Weight:
none
Dimension(L*W*H):
as you request.
Certification:
iso9001
Warranty:
3 months
After-sales Service Provided:
No overseas service provided
Application:
hydraulic systems
Types:
stainless steel filter housing
Supply Ability
Supply Ability:
100 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Wood Cartons or as your order
Port
Tianjin
Lead Time :
10 days

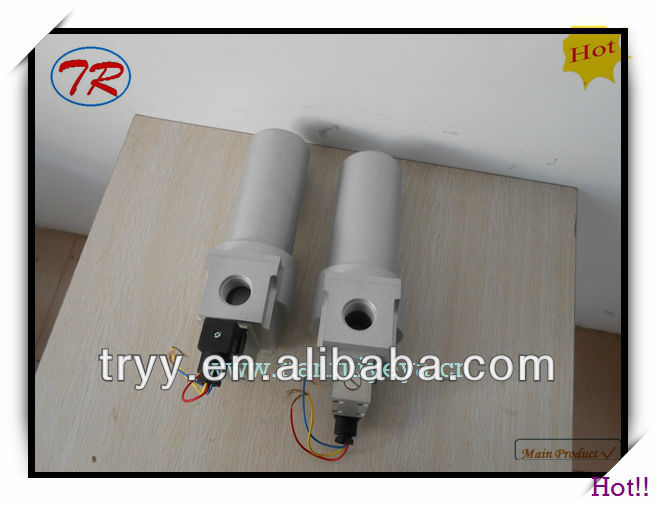

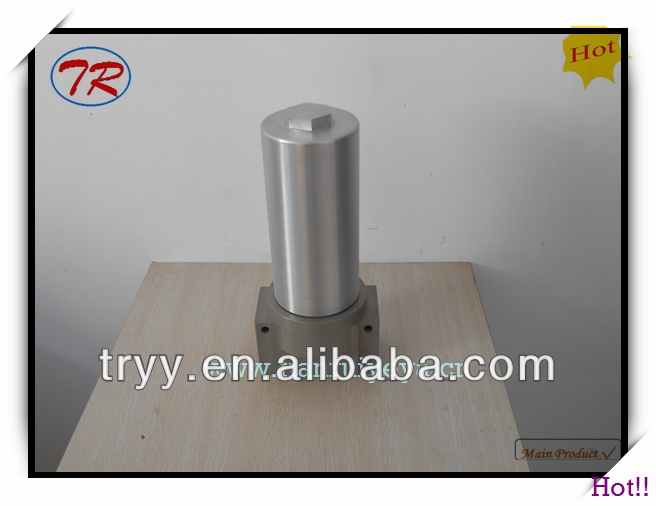

Aluminum hydraulic in line oil filter housing and cartridge YPM420



 Technical data---------hydrauic in line filter housings

Types:

 hydraulic in line oil filter housing

Operating medium

mineral oil, emulsion, water-glycol, phosphate ester

Operating temperature

- 25°C~110°C

Operating pressure (max)

21Mpa

Indicating pressure drop

0. 5MPa




Connection for inline hydraulic filter housings.





Company Information



Xinxiang Tianrui Hydraulic Equipment Co.,ltd is a 15-year manufacturer of  hydraulic in line oil filter housing for hydraulic systems of many major industries, including: Textile, Aviation industry, Construction mining, Coal mining, Power plant, metallurgy, Railways, and Steel / Heavy Industry.

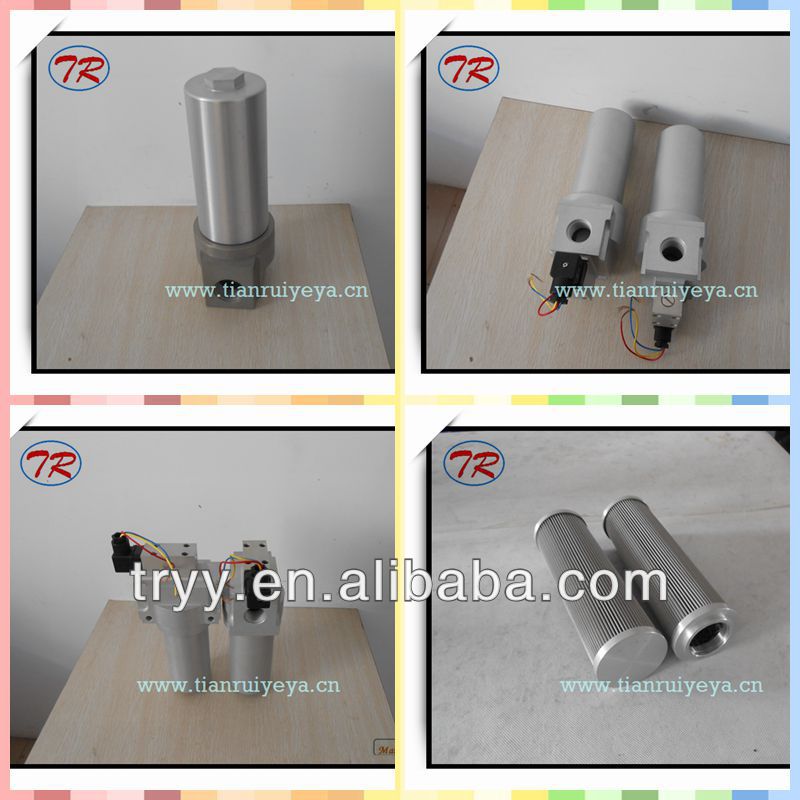

 stainless steel in line hydraulic filter.jpg



Our Services



 Professional technical data systems guaranteed the correctness of filter.

Filtration Specialists with 10 years  experience.

OEM Service for you and satisfy different markets demand.

Widely used in Aviation , Railway, Power plant, Coal mining, Construction mining etc

Samples for 1 pcs and small order 5pcs are allowed.

Carefully Test before delivery .

Can manufacture based on your part no, technical data and drawing, even sample.





Performance in the world 2



Happy time with custoemrs 2



 More YPM stainless steel hydraulic line oil filter housing  for your reference



Type

A

H

H1

H2

L

L1

L2

B

D

G

P

T

C

Weight(Kg)

YPM060…

G3/4

NPT3/4

198

168

137

110

84

25

Φ8.5

Φ68

100

34

14

M8

1.3

YPM110…



268

238

207



















2.1

YPM160…

G1″

NPT1″

254

224

184

128

107

33

Φ8.5

Φ85

100

43

16

M10

2.9

YPM240…



314

284

244



















4.1

YPM330…

G1″

NPT1″

315

285

241

162

134

42

Φ10.5

Φ110

100

52

16

M12

5.8

YPM420…



395

365

321



















11.3

YPM660…



497

467

423



















18.6

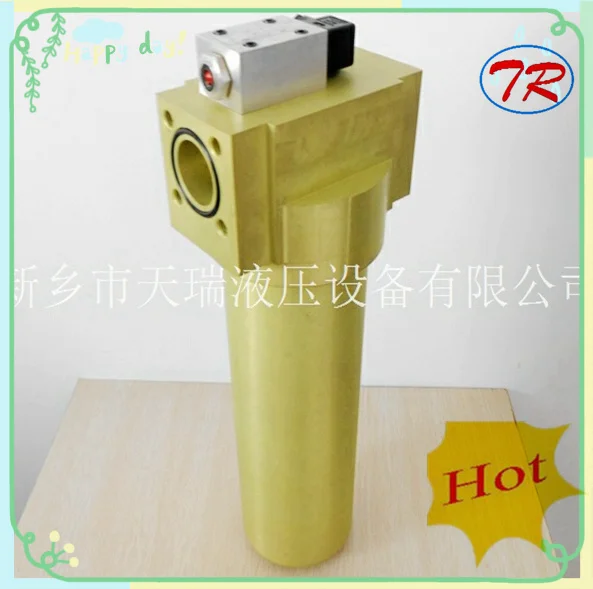

hydraulic line filter.jpg





If you need pressure line hydraulic filter housings, following data need to be noted:



 A.Working media.



 B.Working flow .



 C.Working pressure.



 D.Filtration rating



 E.Material for both housing and inserts.



 Proper line strainer will be suggested to you or design according to your request.



Other types of Strainer filter for your reference:

Filter housing series.jpg
