China hight quality aluminum hydraulic filter housing head

FOB Reference Price:Get Latest Price
US $110-560 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Press Filter
Structure:
Cartridge
Place of Origin:
Henan, China (Mainland)
Brand Name:
Tianrui
Model Number:
PMA
Power(W):
hydraulic filter head
Weight:
according to the size
Dimension(L*W*H):
Customer's Request
Certification:
ISO9001:2008
Warranty:
12 months
After-sales Service Provided:
Engineers available to service machinery overseas
Operating medium:
mineral oil, emulsion, water-glycol, phosphate ester
Operating pressure (max)::
11MPa
Operating temperature:
-25°C~110°C
Indicating pressure drop:
0. 5MPa
By-pass valve unlocking pressure:
0.6MPa
Housing material:
aluminium alloy castings
Filtration precision:
3-40micron
Element material:
glass fiber,stainless steel wire mesh,Stainless steel sintering
Packaging & Delivery
Packaging Details
carton/wooden or as your request
Port
Tianjin/Qingdao or other port
Lead Time :
Shipped in 7 days after payment

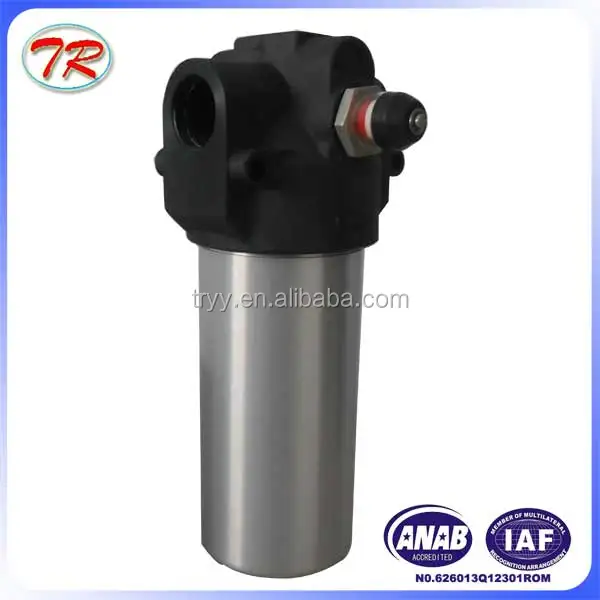

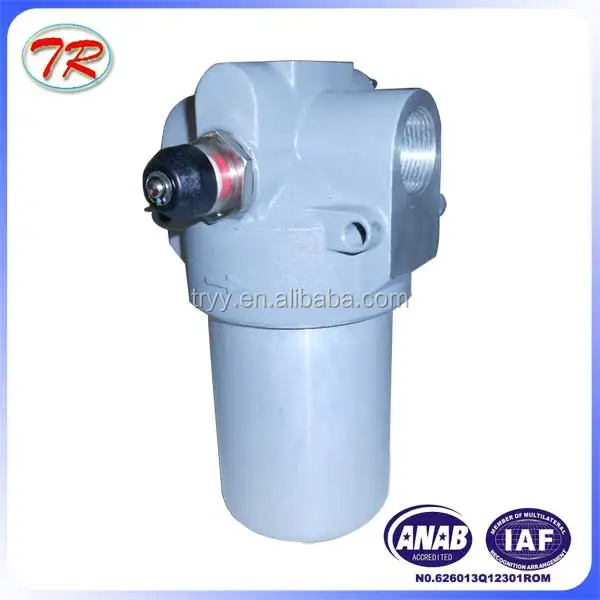

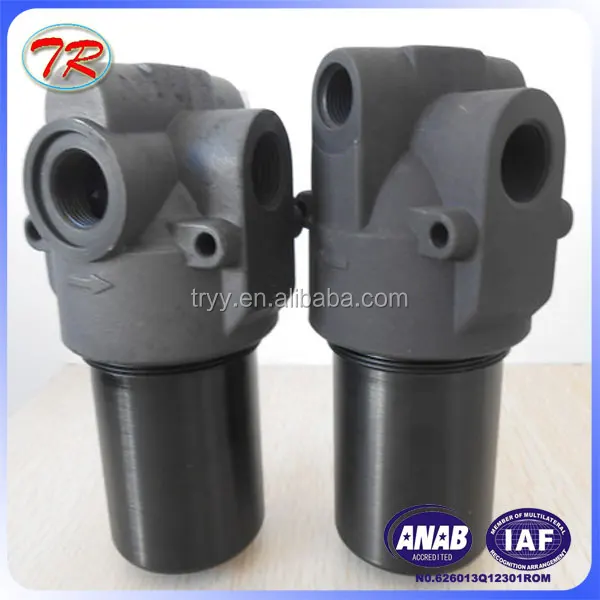

                                                   China hight quality  aluminum hydraulic filter housing head

Product Description

 It is installed in the hydraulic pressure system to filter solid particle and slimes in medium and effectively control cleanliness.

Technical data

Operating pressure (max) 11MPa
Operating temperature -25°C~110°C
Indicating pressure drop  0. 5MPa
By-pass valve unlocking pressure 0.6MPa
Operating medium mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)

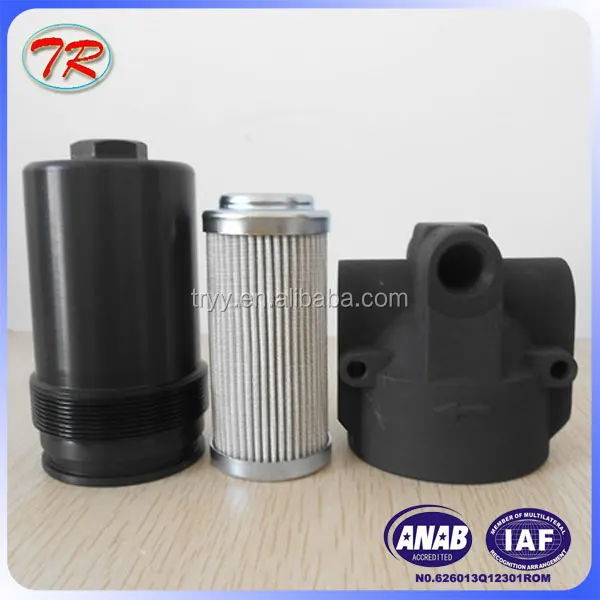

filter cartridge material

inorganic fiber, Resin-impregnated paper, stainless steel sinter fiber web,

stainless steel wire mesh

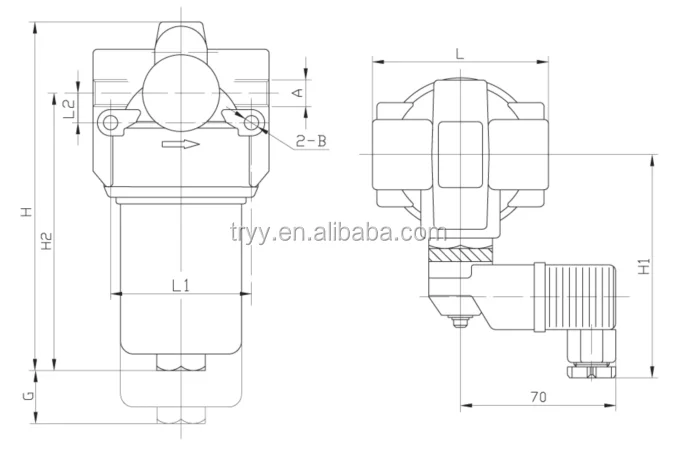

There is design and size

Type

A

H

H1

H2

L

L1

L2

B

C

Weight(Kg)

PMA030…

G1/2 NPT1/2

M22.5X1.5

157

133

129

76

64

17

Φ6.5

60

0.65

PMA060…



244

133

216











0.85

PMA110…

G1

NPT1

M33X2

242

140

184

115

95

25

Φ8.5



1.1

PMA160…



298

140

240











1.3

more filter housing

1,    Low Pressure Fuel Filter -RYL,RYLA Series

2,    Pressure Line Filter -YPH Series

3,    Pressure Line Filter -PHA/B/C/D

4,    Pressure Line Filter -YPM Series

5,    Pressure Line Filter -PMA Series

6,    Low Pressure Return Filter -YPL Series

7,    Low Pressure Line Filter -PLA Series

8,    Tank Suction Filter -WU Series

9,   The core pulling  pressure line filter-FMQ series

If you need pressure line filter, following data need to be noted:

A.Working media.

B.Working flow .

C.Working pressure.

D.Filtration rating

Proper line strainer will be suggested to you or design according to your request.

other related filter housing



Company Information

We Xinxiang Tianrui Hydraulic Equipent Co.,Ltd are filters manufacturer located in Xinxiang City, Henan Province,China.

We have More than 10 years experience in filtration industry,malinly products are replacement filter element  & high/low pressure filter& locomotive filter & oil purifier , Widely used in aviation, aerospace, railway, mining machinery, metallurgy, chemical industry, machinery manufacturing, etc .Already get ISO9001: 2008 certification.

company advantage

uSpeciallists for industrial filters for almost 10 years,widely used  in power  plant,Steel plant,Coal Mining, Construction Mining etc.

OEM Service for hydraulic filters or other types of industrial filters.

Manufacture as you request.

Samples and small order are allowed.

Perfect after-sale service team and any mistakes will be charged by us.
