Quick Details

  • Condition: New
  • Type: Suction Filter
  • Structure: Cartridge
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: TianRui
  • Model Number: pma030
  • Power(W): visual flow indicator
  • Weight: 0.65KG
  • Dimension(L*W*H): 76*157
  • Certification: ISO9001:2008
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details carton/wooden or as your request
Delivery Time Shipped in 7 days after payment

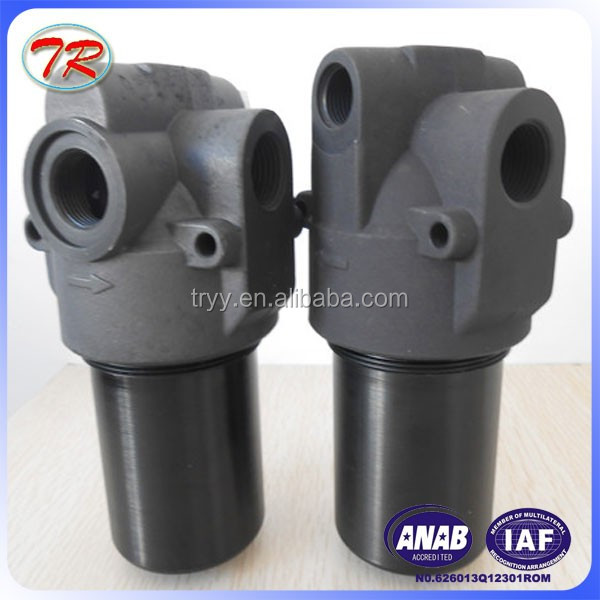

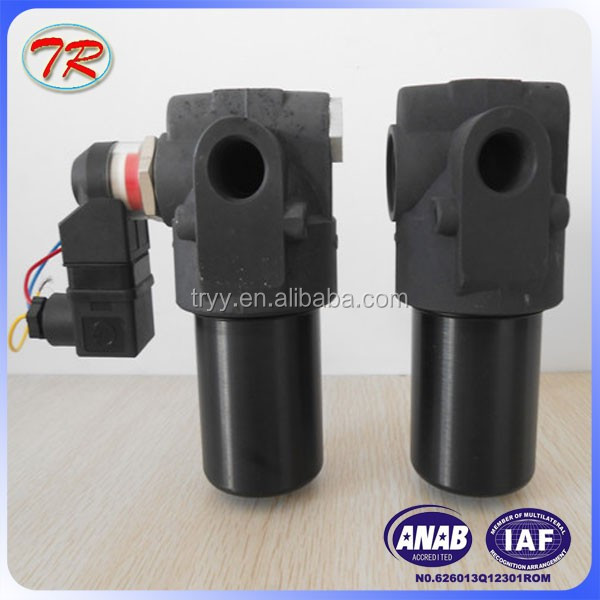

                                   Phosphate hydraulic oil and visual flow indicator PMA030  Filter housing

Product Description

 It is installed in the hydraulic pressure system to filter solid particle and slimes in medium and effectively control cleanliness.

TECHNICAL DATA

Operating medium mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)
Operating pressure (max) 11MPa
Operating temperature -25°C~110°C
Indicating pressure drop 0. 5MPa
Bypass valve unlocking pressure 0.6MPa
filter element material

 inorganic fiber, Resinimpregnated paper,

 stainless steel sinter fiber web,

stainless steel wire mesh.

Detailed Images

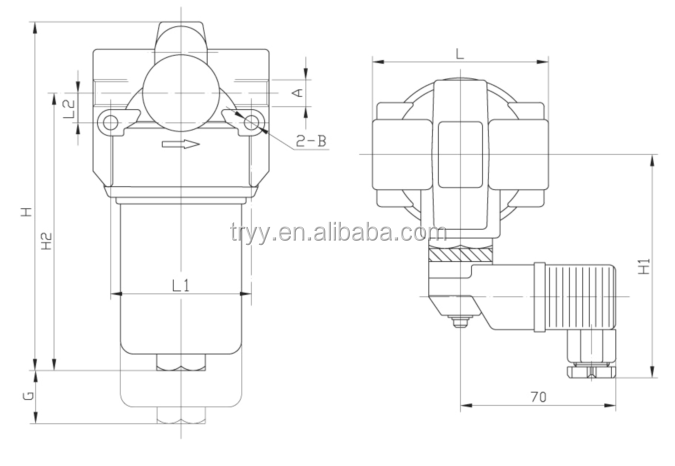

there is design and size

Type

A

H

H1

H2

L

L1

L2

B

C

Weight(Kg)

PMA030

G1/2 NPT1/2

M22.5X1.5

157

133

129

76

64

17

Φ6.5

60

0.65

PMA060



244

133

216











0.85

PMA110

G1

NPT1

M33X2

242

140

184

115

95

25

Φ8.5



1.1

PMA160



298

140

240











1.3

more filter housing

1,    Low Pressure Fuel Filter -RYL,RYLA Series

2,    Pressure Line Filter -YPH Series

3,    Pressure Line Filter -PHA/B/C/D

4,    Pressure Line Filter -YPM Series

5,    Pressure Line Filter -PMA Series

6,    Low Pressure Return Filter -YPL Series

7,    Low Pressure Line Filter -PLA Series

8,    Tank Suction Filter -WU Series

9,   The core pulling  pressure line filter-FMQ series

If you need pressure line filter, following data need to be noted:

A.Working media.

B.Working flow .

C.Working pressure.

D.Filtration rating

Proper line strainer will be suggested to you or design according to your request.

other related filter housing



Company Information

We Xinxiang Tianrui Hydraulic Equipent Co.,Ltd are filters manufacturer located in Xinxiang City, Henan Province,China.

We have More than 10 years experience in filtration industry,malinly products are replacement filter element  & high/low pressure filter& locomotive filter & oil purifier , Widely used in aviation, aerospace, railway, mining machinery, metallurgy, chemical industry, machinery manufacturing, etc .Already get ISO9001: 2008 certification.

company advantage

uSpeciallists for industrial filters for almost 10 years,widely used  in power  plant,Steel plant,Coal Mining, Construction Mining etc.

OEM Service for hydraulic filters or other types of industrial filters.

Manufacture as you request.

Samples and small order are allowed.

Perfect after-sale service team and any mistakes will be charged by us.

Certifications



Customer visiting



Packaging & Shipping



contact

If you need filter element and filter housing,

Contact me please!
