Quick Details

  • Condition: New
  • Type: Return Filter
  • Structure: Cartridge
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: TR
  • Model Number: RYL
  • Power(W): Aviation Fuel oil filter
  • Weight: 5kg
  • Dimension(L*W*H): 145X80X183mm
  • Certification: ISO9001
  • Warranty: 6 months
  • After-sales Service Provided: Overseas service center available
  • Filtration rating: 25um
  • Application: Aviation fuel filter
  • Material: Stainless steel wire mesh
  • Items: Low fuel filter element

Packaging & Delivery

Packaging Details wood carton ,or as you request
Delivery Time 20 days after payment



RYLA-40 low pressure fuel oil filter housing for aviation fuel.



Product Description



 Types

 Low pressure fuel filter housing and filter element

Operating pressure

0-1.6 MPa

Operating temperature

-55°C--125°C

Operating medium

Fuel,RP-1,RP-2,RP-3

Filtrate precision

1-100μm

Alarm pressure of differential pressure

0.35±0.05 MPa

Filtrate media

Special stainless steel mesh, Stainless steel fiber felt, Inorganic fibers

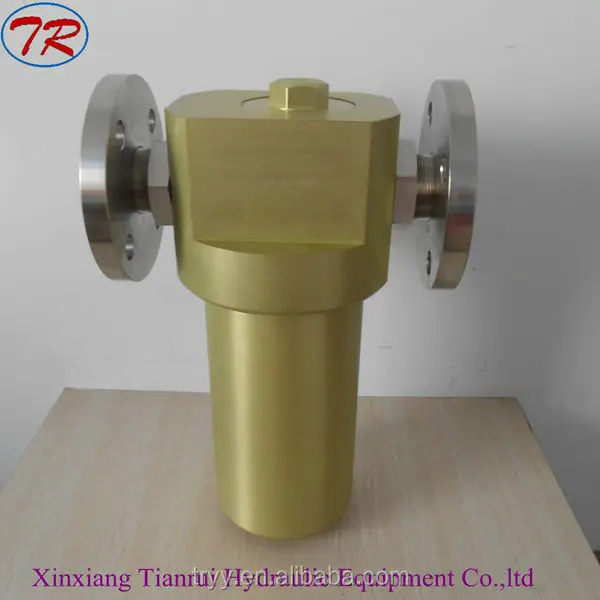

Low pressure fuel filter housing

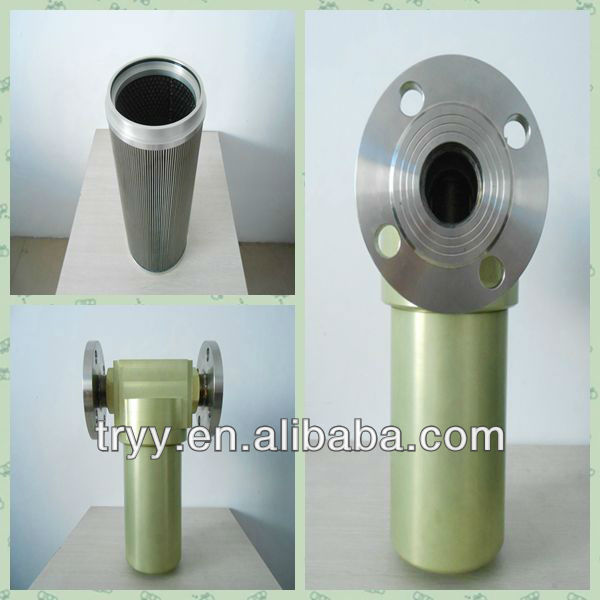

Low pressure fuel filter element



Company service

1.Consulting Service and finding solution for any problems in your industry.

2.Designing and manufacturing as your request.

3.Analyze and make drawings as your pictures or samples for your confirmation.

4.Warm welcome for your business trip to our factory.

5.Perfect after-sales service to manage your quarrel

Company Strength.

Professional technical data systems guaranteed the correctness of filter.

15 years OEM production experience.

Quality guaranteed by ISO 9001:2008

Vendors for Eaton Filtration China Branch.

Atlas copco authorised distributor for dust filter 3214623901

Ranking 3rd for Notched wire filter element overseas.

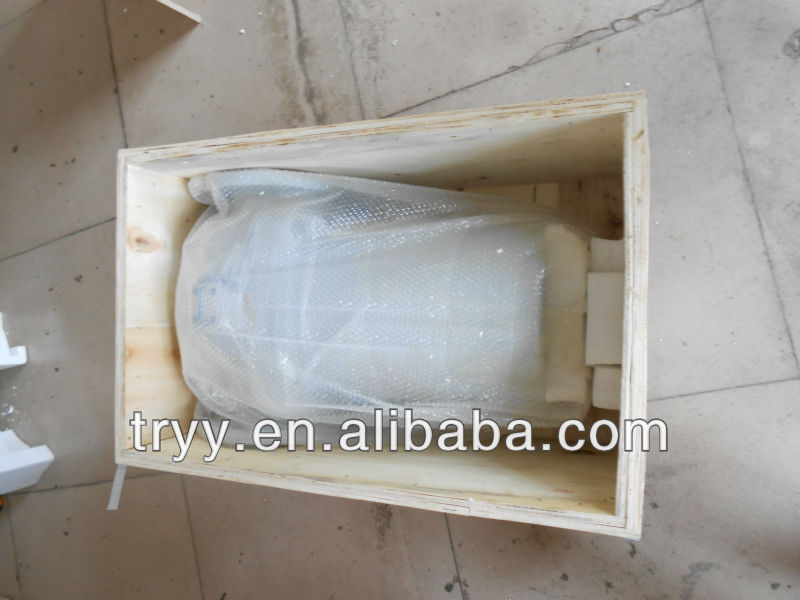

Package of fuel filter housing

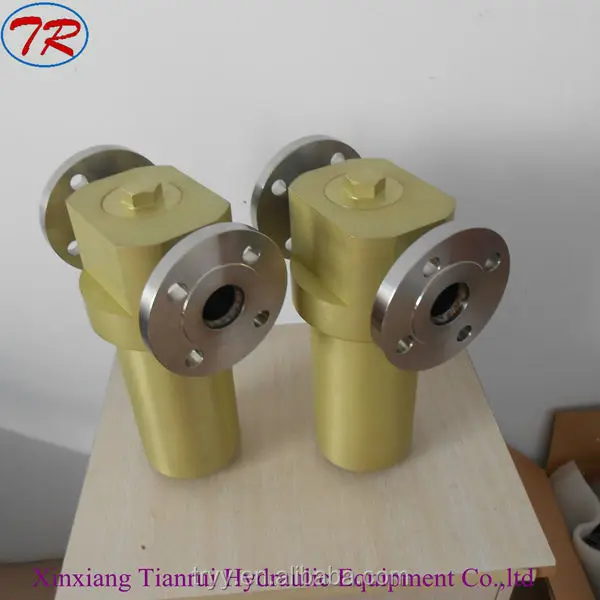

More Fuel oil filter housing for your references



  DIMENSIONAL LAYOUT

Type

RYL/RYLA

Flow rates

L/min

Diameter

d

H

H0

L

E

Screw thread:M

Flange size A×B×C×D

Structure

Notes

16

100

Φ16

283

252

208

Φ102

M27×1.5

Picture 1

Can be selected from the signal device, bypass valve and release valve according to request

22

150

Φ22

288

257

208

Φ116

M33×2

32

200

Φ30

288

257

208

Φ116

M45×2

40

400

Φ40

342

267

220

Φ116

Φ90×Φ110×Φ150×(4-Φ18)

50

600

Φ50

512

429

234

Φ130

Φ102×Φ125×Φ165×(4-Φ18)

Picture 2

65

800

Φ65

576

484

287

Φ170

Φ118×Φ145×Φ185×(4-Φ18)

80

1200

Φ80

597

487

394

Φ250

Φ138×Φ160×Φ200×(8-Φ18)

100

1800

Φ100

587

477

394

Φ260

Φ158×Φ180×Φ220×(8-Φ18)

125

2300

Φ125

627

487

394

Φ273

Φ188×Φ210×Φ250×(8-Φ18)























































If you need aviation fuel filter, following data need to be noted:



A.Working media.



B.Working flow .



C.Working pressure.



D.Filtration rating



Proper line strainer will be suggested to you or design according to your request.
