hydraulic line suction strainer used for shovel

FOB Reference Price:Get Latest Price
US $39-79 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Hydraulic Filters
Model Number:
PLA330FVR11N6
Brand Name:
Tianrui Hydrulic
Place of Origin:
Henan, China (Mainland)
Certificate:
ISO9001:2008
Application:
Hydraulic Filter System
Material:
Carbon Steel
SupplyAbility
SupplyAbility:
600 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton box
Port
QINGDAO
Lead Time :
7 working days
Product Description

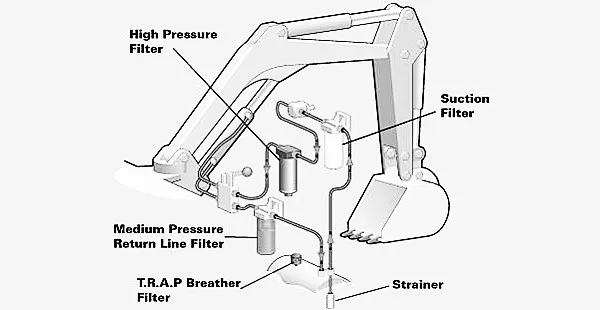

  Yes, our hydraulic line suction strainer used for shovel hydraulic system,our company can do kinds of hydraulic strainer  to meet  different needs.







Low Pressure Line Filter is installed in the pressure,suck or return pipeline of hydraulic system to filter solid particle and slimes in medium and effectively control cleanliness.

Pressure gauge,vacuum pressure gauge,pressure switch and vacuum pressure switch can be assembled according to actual requirement.

Filter medium adopts many kinds of materials,such as inorganic fiber,cellulose fiber.

Filter vessel is die cast in aluminum alloy.

Filter element with small weight and compact construction can be assembled by spinning.

Filter element can be replaced easily.

TECHNICAL DATA

Operating medium:mineral base fluid,emulsion,water glycol phosphate ester,(cellulose fiber just for mineral base fluid)

Operating pressure(max):1MPa

Operating temperature:-25oC~110oC

Indicating pressure of pressure switch:0.15MPa

Indicating pressure of vacuum pressure switch:0.03MPa

By pass valve unlocking pressure:0.3MPa

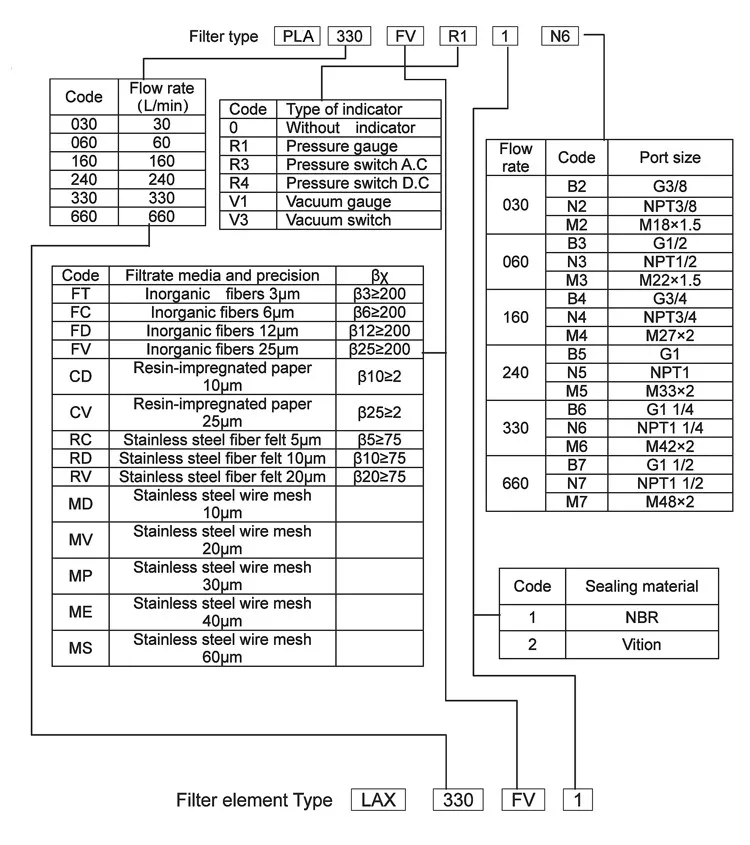

Dering information





CLEANING FILTER ELEMENT COLLAPSE PRESSURE UNDER RTING FLOW RATES



(Unit:1×105Pa  Medium parameters:30cst  0.86Kg/dm3)



Type

Housing

Filter element

 FT

FC

FD

FV

CD

CV

RC

RD

MD

MV

PLA030…

0.43

0.51

0.42

0.37

0.34

0.41

0.28

0.40

0.34

0.43

0.28

PLA060…

0.48

0.50

0.40

0.36

0.34

0.41

0.28

0.38

0.33

0.43

0.28

PLA160…

0.42

0.51

0.42

0.37

0.36

0.42

0.29

0.40

0.34

0.42

0.27

PLA240…

0.46

0.49

0.41

0.36

0.36

0.42

0.29

0.39

0.33

0.43

0.28

PLA330…

0.43

0.50

0.43

0.39

0.34

0.41

0.29

0.40

0.36

0.43

0.27

PLA660…

0.48

0.52

0.43

0.39

0.35

0.42

0.29

0.40

0.36

0.44

0.29

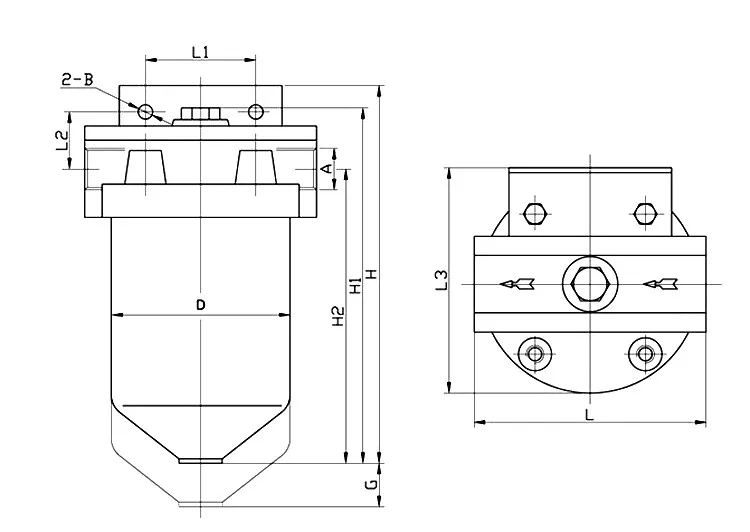

Type

A

H

H1

H2

L

L1

L2

L3

PLA030…

G3/8  NPT3/8   M18×1.5

170

163

132

105

50

26

95

PLA060…

G1/2  NPT1/2   M22×1.5

PLA160…

G3/4  NPT3/4   M27×1.5

245

243

206

140

100

24

135

PLA240…

G1″    NPT1      M33×2

285

283

246

PLA330…

G1 1/4″  NPT11/4″  M42×2

290

285

240

178

150

28

185

PLA660…

G1 1/2″  NPT1 1/2″  M48×2

345

340

295





Type

B

D

G

Weight(Kg)

PLA030…

Φ6.5

Φ81

20

1.0

PLA060…

1.0

PLA160…

Φ8.5

Φ114

25

2.0

PLA240…

2.5

PLA330…

Φ10.5

Φ115

25

6.0

PLA660…

6.5











Our company strictly enforce quality standards

♦ISO4572 hydraulic fluid power-Filter-Mulit-pass method for evaluating filtration performance

♦ISO2941 hydraulic fluid power-Filter elements- Verification of collapse/burst resistance

♦ISO2942Hydraulic fluid power-Filter elements-Verification of fabrication integrity

♦ISO2943Hydraulic fluid power-Filter elements-Verification of material compatibility with fluids

♦ISO3723 Hydraulic fluid power-Filter elements-Method for end load test

♦ISO3724 Hydraulic fluid power-Filter elements-Verification of flow fatigue characteristics

♦ISO3768 Hydraulic fluid power-Filters-Evaluation of pressure drop versus flow characteristics
