Quick Details

  • Condition: New
  • Type: Return Filter
  • Structure: Cartridge
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: TR
  • Model Number: YPL110 E2 T FT 1 B8
  • Power(W): /
  • Weight: can be measured, 1.3Kgs
  • Dimension(L*W*H): bespoken
  • Certification: ISO9001:2008
  • Warranty: 12 months
  • After-sales Service Provided: Overseas service center available
  • Capacity: filter solid particle and slimes
  • Operating pressure (max): 1.6MPa
  • Operating temperature: -25℃~110℃
  • Indicating pressure drop: 0. 2MPa
  • By-pass valve unlocking pressure: 0.3MPa
  • Flow rates: 110L/min
  • Operating medium: mineral oil, emulsion, water-glycol, phosphate ester
  • Micron: 3um
  • Filtrate media: Inorganic fibers

Packaging & Delivery

Packaging Details Cartons or according to the customers requirements.
Delivery Time According to contact.

Oil Line Filter YPL110 E2 T FT 1 B8 Low Pressure Return Filter



1) DESCRIPTION

It is installed in the lowpressure or return pipeline of hydraulic sys to filter solid particle and slimes in medium

and effectively control cleanliness.Bypass valve is installed in a filter element. Pressure gauge and other indicators can be assembled according to actual requirement.Filter medium adopts many kinds of materials, such as inorganic fiber, resin-impregnated paper and stainless steel wire mesh.

Filter vessel is cast in aluminum and has a nice looking figure.

2) TECHNICAL DATA

Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)

Operating pressure (max): 1.6MPa       Operating temperature: -25℃~110℃

Indicating pressure drop: 0. 2MPa       By-pass valve unlocking pressure: 0.3MPa

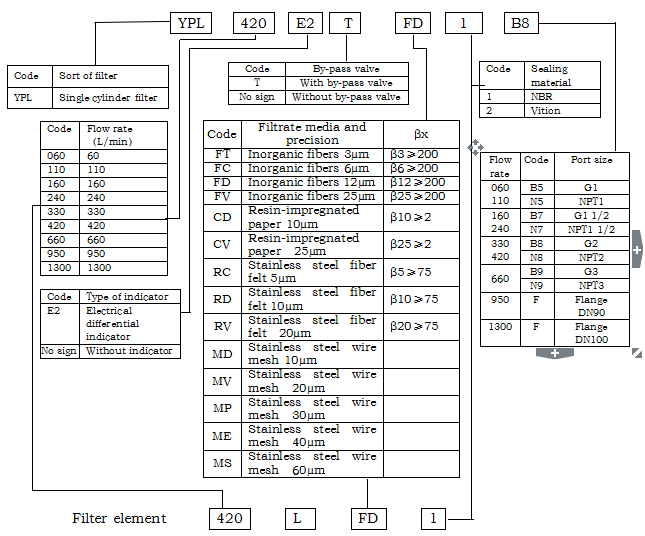

3) ORDERING INFORMATION



Photo show
