42 Mpa Stainless steel hydraulic filter PHA110 hydraulic line filter

FOB Reference Price:Get Latest Price
US $100-360 / Sets | 2 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Press Filter
Structure:
Cartridge
Place of Origin:
Henan, China (Mainland)
Brand Name:
TR
Model Number:
PHA110
Power(W):
stainless steel hydraulic filter
Weight:
5kg
Dimension(L*W*H):
328mm
Certification:
ISO9001
Warranty:
1year
After-sales Service Provided:
Overseas service center available
Working pressure:
42Mpa
Working tempreture:
-25~110
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wood Carton or as you request.
Port
Tianjin Shanghai
Lead Time :
Shipped in 20 days after payment

42 Mpa Stainless steel hydraulic filter PHA110 hydraulic line filter



Product Description



It is installed in the hydraulic pressure system to filter solid particle and slimes in medium and effectively control cleanliness.

Its configuration and connect form convenient for other hydraulic pressure element integration assemblage.

Differential pressure indicator and by-pass valve can be assembled according to actual requirement.

Filter element adopts many kinds of materials, such as inorganic fiber, resin-impregnated paper, stainless steel sinter fiber web, stainless steel wire mesh.

Filter vessel is made of stainless steel , and has nice looking figure.



 TECHNICAL DATA

Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)

Operating pressure (max): 42MPa

Operating temperature:- 25°C~110°C

Indicating pressure drop: 0. 5MPa

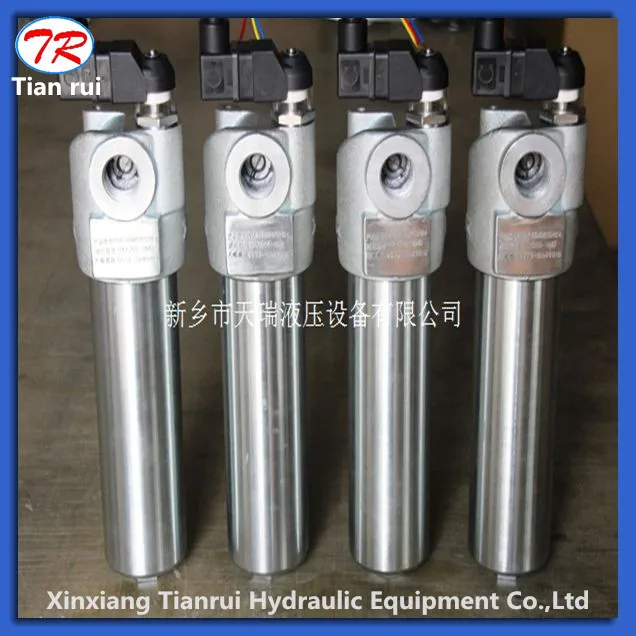

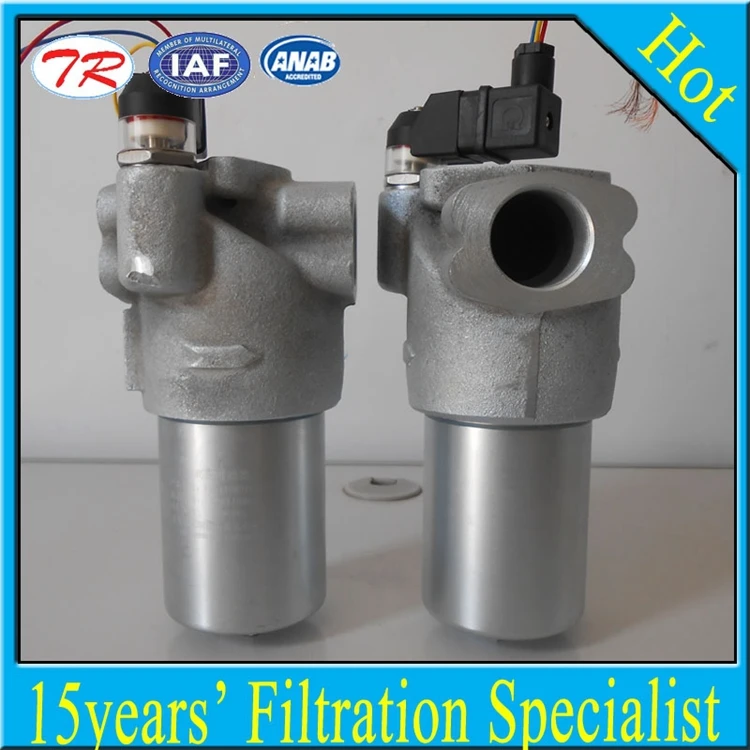

hydraulic filter housing (3).jpghydraulic filter  (2).jpg







stainless steel hydraulic filter and elements



 ORDERING INFORMATION



Type

A

H

H1

H2

L

L1

L2

B

G

Weight(kg)

020

G1/2 NPT1/2 M22×1.5

G3/4 NPT3/4 M27×2

208

165

142

85

46

12.5

M8

100

4.4

030

238

195

172

4.6

060

338

295

272

5.2

110

G3/4 NPT3/4 M27×2

G1   NPT1   M33×2

269

226

193

107

65

---

M8

6.6

160

360

317

284

8.2

240

G1   NPT1   M33×2

G1 ″ NPT1″ M42×2

G1″ NPT1″ M48×2

287

244

200

143

77

43

M10

11

330

379

336

292

13.9

420

499

456

412

18.4

660

600

557

513

22.1



hydraulic-line-filter-strainer-.jpghydraulic-filter-strainer-housing-.jpghydraulic-oil-filter-housing-.jpg



.jpg



42 Mpa Stainless steel hydraulic filter PHA110 hydraulic line filter

Company service



1.Consulting Service and finding solution for any problems in your industry.

2.Designing and manufacturing as your request.

3.Analyze and make drawings as your pictures or samples for your confirmation.

4.Warm welcome for your business trip to our factory.

5.Perfect after-sales service to manage your quarrel

drawings for samples.jpg

Happy time with custoemrs 2.jpg



Company Strength.

Professional technical data systems guaranteed the correctness of filter.

15 years OEM production experience.

Quality guaranteed by ISO 9001:2008

Vendors for Eaton Filtration China Branch.

Atlas copco authorised distributor for dust filter 3214623901

Ranking 3rd for Notched wire filter element overseas.

Performance in the world 2

Certification for ISO9002

If you need high pressure hydraulic filter, following data need to be noted:

A.Working media.



B.Working flow .



C.Working pressure.



D.Filtration rating



Proper line strainer will be suggested to you or design according to your request.
