Quick Details

  • Condition: New
  • Type: Press Filter
  • Structure: Cartridge
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Tianrui
  • Model Number: RYLA
  • Power(W): furl filter
  • Weight: according to the size
  • Dimension(L*W*H): Customer's Request
  • Certification: ISO9001:2008
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Operating pressure: 0-1.6 MPa
  • Operating temperature: -55℃--125℃
  • Operating medium: Fuel,RP-1,RP-2,RP-3
  • Filtrate precision: 1-100μm

Packaging & Delivery

Packaging Details carton/wooden or as your request
Delivery Time Shipped in 10 days after payment

               China suppliers  basket Fuel filter  strainer/ pump fuel filter  strainer / fuel oil filter housing

Product Description

It is installed in the tester and engine test cell fuel oil supply system of aviation system, to filter solid particle and slimes in medium and effectively control cleanliness.

Technical data

  Operating pressure  0-1.6 MPa
   Operating temperature  -55--125
  Operating medium  Fuel,RP-1,RP-2,RP-3
  Filtrate precision  1-100μm
  Alarm pressure of differential pressure  0.35±0.05 MPa
  Filtrate media

  Special stainless steel mesh, Stainless steel

fiber felt, Inorganic fibers.

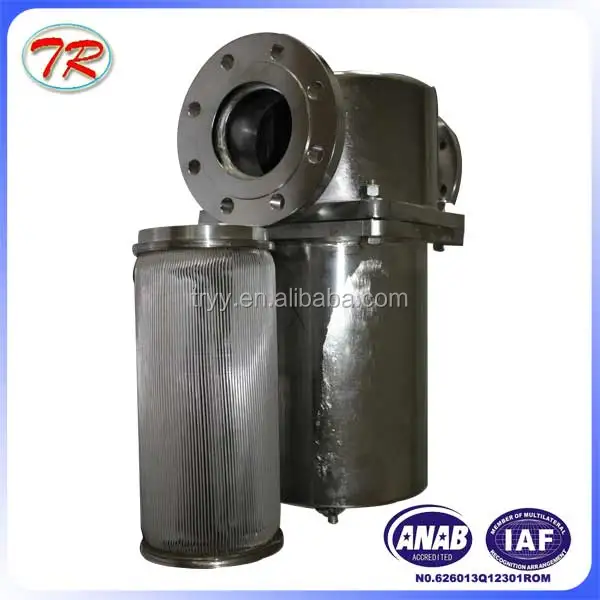

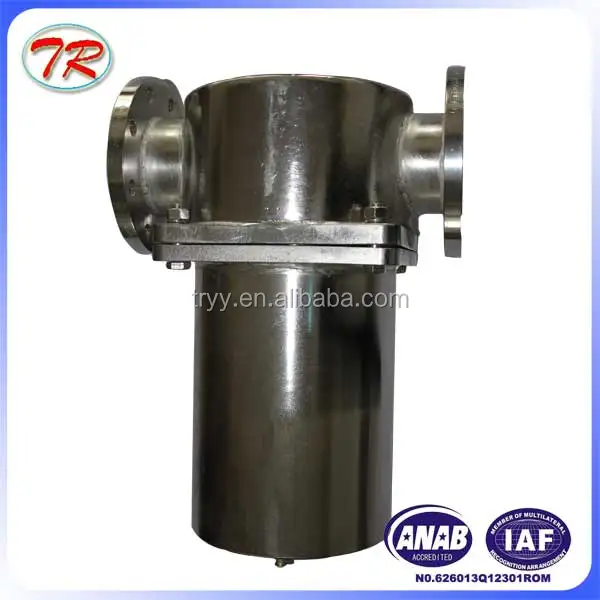

Detailed Images



There is design and size

Type

RYL/RYLA

Flow rates

L/min

Diameter

d

H

H0

L

E

Screw thread:M

 Flange size A×B×C×D

Structure

Notes

16

100

Φ16

283

252

208

Φ102

M27×1.5

Picture 1

Can be selected from

thesignal device,

bypass valve and

releasevalve

accordin

g to request

















22

150

Φ22

288

257

208

Φ116

M33×2



32

200

Φ30

288

257

208

Φ116

M45×2



40

400

Φ40

342

267

220

Φ116

Φ90×Φ110×Φ150×(4-Φ18)



50

600

Φ50

512

429

234

Φ130

Φ102×Φ125×Φ165×(4-Φ18)

Picture 2

65

800

Φ65

576

484

287

Φ170

Φ118×Φ145×Φ185×(4-Φ18)



80

1200

Φ80

597

487

394

Φ250

Φ138×Φ160×Φ200×(8-Φ18)



100

1800

Φ100

587

477

394

Φ260

Φ158×Φ180×Φ220×(8-Φ18)



125

2300

Φ125

627

487

394

Φ273

Φ188×Φ210×Φ250×(8-Φ18)

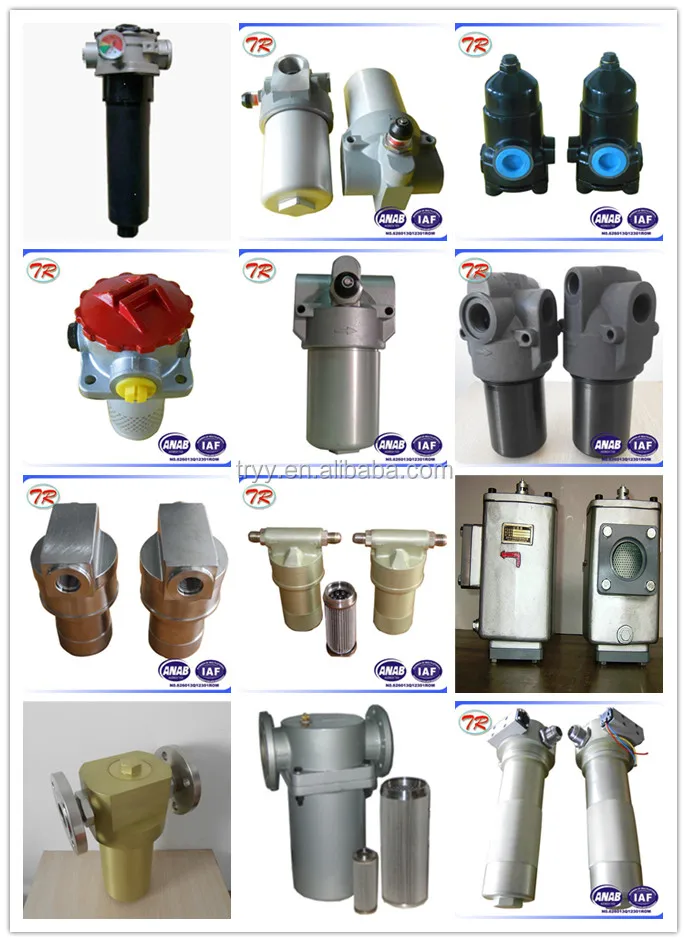

more filter housing

1,    Low Pressure Fuel Filter -RYL,RYLA Series

2,    Pressure Line Filter -YPH Series

3,    Pressure Line Filter -PHA/B/C/D

4,    Pressure Line Filter -YPM Series

5,    Pressure Line Filter -PMA Series

6,    Low Pressure Return Filter -YPL Series

7,    Low Pressure Line Filter -PLA Series

8,    Tank Suction Filter -WU Series

9,   The core pulling  pressure line filter-FMQ series

If you need pressure line filter, following data need to be noted:

A.Working media.

B.Working flow .

C.Working pressure.

D.Filtration rating

Proper line strainer will be suggested to you or design according to your request.

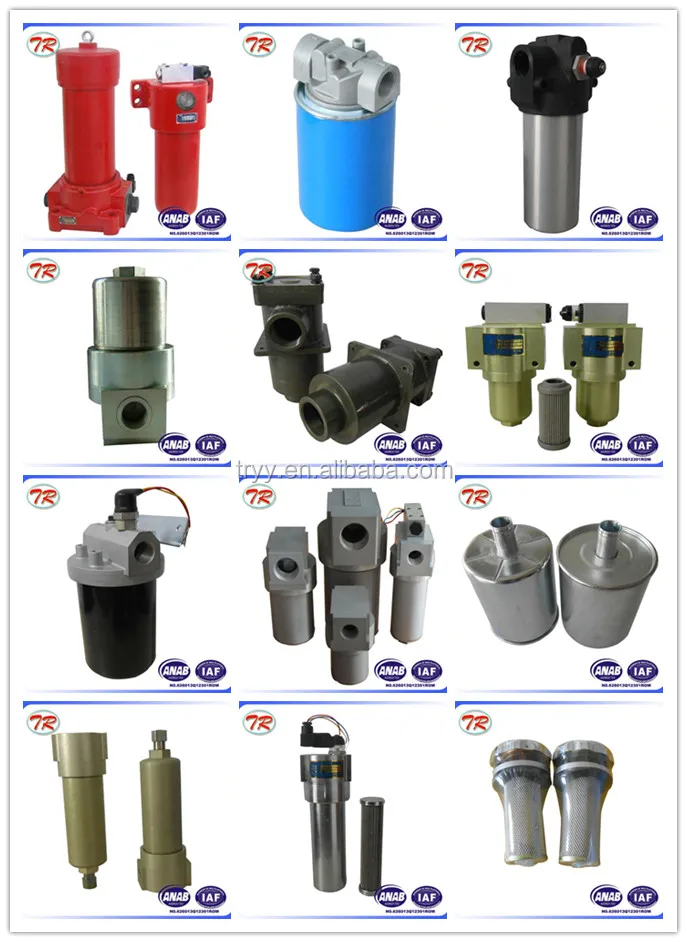

other related filter housing



Company Information

We Xinxiang Tianrui Hydraulic Equipent Co.,Ltd are filters manufacturer located in Xinxiang City, Henan Province,China.

We have More than 10 years experience in filtration industry,malinly products are replacement filter element  & high/low pressure filter& locomotive filter & oil purifier , Widely used in aviation, aerospace, railway, mining machinery, metallurgy, chemical industry, machinery manufacturing, etc .Already get ISO9001: 2008 certification.

company advantage

uSpeciallists for industrial filters for almost 10 years,widely used  in power  plant,Steel plant,Coal Mining, Construction Mining etc.

OEM Service for hydraulic filters or other types of industrial filters.

Manufacture as you request.

Samples and small order are allowed.

Perfect after-sale service team and any mistakes will be charged by us.

Certifications



Customer visiting



Packaging & Shipping



contact

If you need filter element and filter housing,

Contact me please!
