Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: LEEMIN
  • Model Number: spbx-10x10
  • After-sales Service Provided: No overseas service provided
  • material of head: aluminium alloy filter head
  • material of barrel: quality structural steel
  • operating pressure: 0.7mpa max
  • temperature range: -30℃~90℃
  • date of manufacture: march 28.2016
  • others: avacuum indicator in the filter head will signal
  • Nominal Micron Rating: 3,5,10,20,25,50,100,200um
  • Certificates: ISO9001:2008
  • Working medium: General hydraulic oil, Phosphate, hydraulic oil, water-glycol.
  • Flow: 60-320L/min

Packaging & Delivery

Packaging Details The general is the cartons and 30~40 piece in a case, also as your require
Delivery Time Shipped in 10 days after payment



Product Description

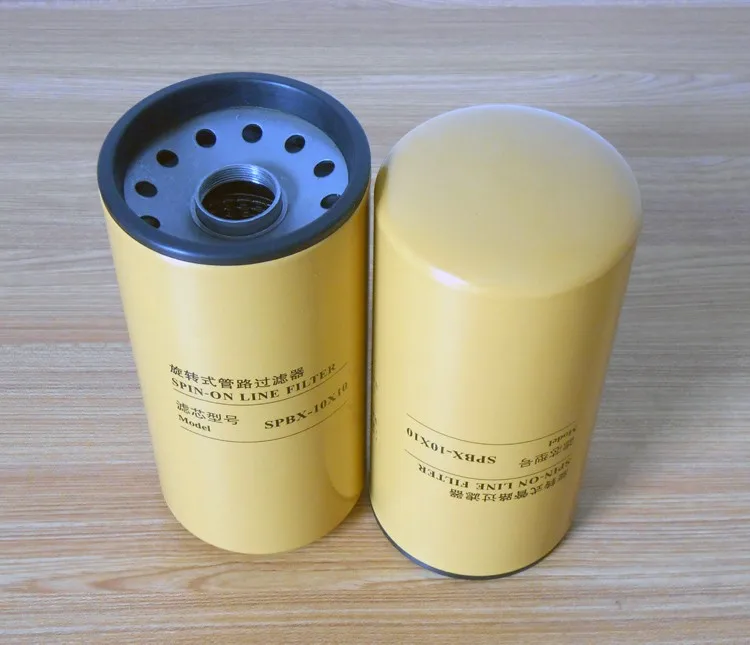

 Spion-on filter

1.MODEL CODE

  SP◊-60Χ◊-◊

spSpion -on filter
Omit of a set of filter ,H is filter head  X is element
60Nom.Dia.0.6:Rc3/4
Filtration accuracy:10 μm 25 μm. Omit of it only filter head
J :Suction filter .Omit: Return oil filter

2.TECHNICAL DATA

ModeMax.(mpa)Blow up press(mpa)By-pass seting(mpa)Max.Flow(L/min)filter(μm)Weight (kg)ScrewModel of filter heardModel of elelment
SP-06X100.72.00.256020100.76R3/4SPH-06SPH-06-JSPX-06X10
SP-06X257025250.76R3/4SPX-06X25
SP-08X106020100.76R1SPH-08SPH-08-JSPX-08X10
SP-08X257025250.76R1SPX-08X25
SP-10X1014442101.88R1¼SPH-10SPH-10-JSPX-10X10
SP-10X2516050251.88R1¼SPX-10X25
SPA-10X1020058102.70R1¼SPXA-10X10
SPB-10X1032080103.0R1¼SPXB-10X10

3.MOUNTING SIZE

ModelABCFGJKLMNOPQ
SP-06Rc¾″53135931883842801059325
SP-08Rc1″53135931883842801059325
SP-10Rc1¼″621761252384742136150136453718.5
SPA-10Rc1¼″622311252934742136150136453718.5
SPB-10Rc1¼″622701253304742136150136453718.5

4.SPIN-ON FILTER HEAD

5.SPIN-ON ELEMENT

ModelLDM
SPX-06x*135Φ931″-12UNF
SPX-08x*135Φ931″-12UNF
SPX-10x*178Φ1251½″-16UNF
SPX-10x10230Φ1251½″-16UNF
SPX-10x10270Φ1251½″-16UNF

6.PRODUCT SHOW






Our company strictly enforce quality standards

♦ISO4572 hydraulic fluid power-Filter-Mulit-pass method for evaluating filtration performance

♦ISO2941 hydraulic fluid power-Filter elements- Verification of collapse/burst resistance

♦ISO2942Hydraulic fluid power-Filter elements-Verification of fabrication integrity

♦ISO2943Hydraulic fluid power-Filter elements-Verification of material compatibility with fluids

♦ISO3723 Hydraulic fluid power-Filter elements-Method for end load test

♦ISO3724 Hydraulic fluid power-Filter elements-Verification of flow fatigue characteristics

♦ISO3768 Hydraulic fluid power-Filters-Evaluation of pressure drop versus flow characteristics
