Quick Details

  • Condition: New
  • Type: Return Filter
  • Structure: Cartridge
  • Place of Origin: China (Mainland)
  • Brand Name: Tianrui
  • Model Number: Customer's Requirements
  • Power(W): 0
  • Weight: 1~10 KG
  • Dimension(L*W*H): Customer's Request
  • Certification: ISO9001:2008
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Material: Glass Fiber
  • Application: Hydraulic System
  • Working medium: General Hydraulic Oil
  • Filter Type: Liquid
  • Efficiency: 99.99% Filtration Area
  • Filtration Rating: 1-100um

Packaging & Delivery

Packaging Details cartons
Delivery Time 10days
Product Description

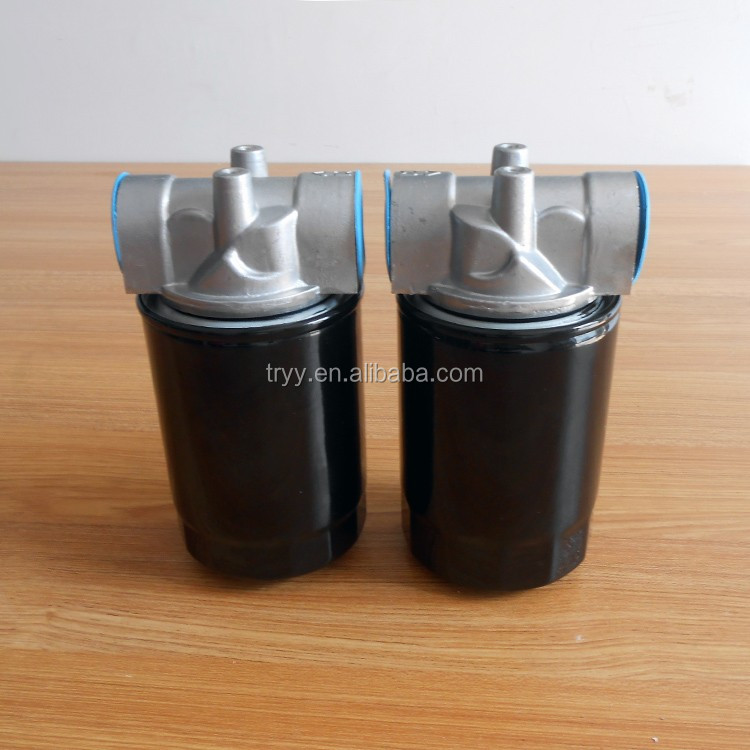

It is installed in the low pressure, suck or return pipeline of hydraulic system to filter solid particle and slimes in medium and effectively control cleanliness.

Pressure gauge ,vacuum pressure gauge pressure switch and vacuum switch can be assembled according to actual requirement.

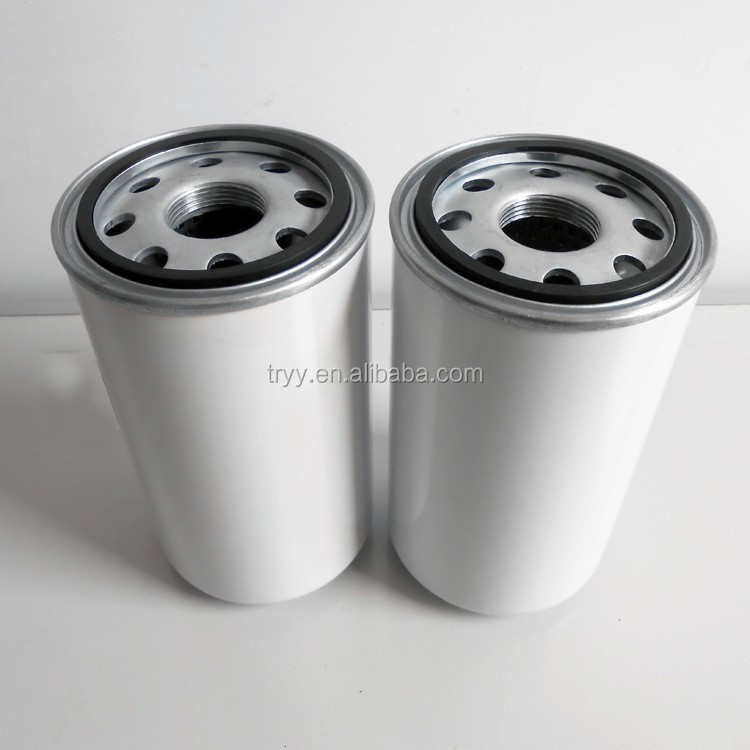

Filter medium adopts many kinds of materials, such as  inorganic fiber, resin- impregnated paper. Filter vessel is die –cast in aluminum alloy. Filter element with small weight and compact construction can be assembled by spinning. Filter element can be replaced easily.

TECHNICAL DATA

Operating medium: mineral oil, emulsion, water-glycol, phosphate ester(Resin-impregnated paper just for mineral oil)

Operating pressure(max) 1Mpa

Pressure switch indicating pressure:0.15Mpa

By-pass valve unlocking pressure: 0.3Mpa

Operating temperature:

Indicating pressure of vacuum pressure switch: 0.3Mpa

Cleaning filter element collapse pressure under rating flow rates.

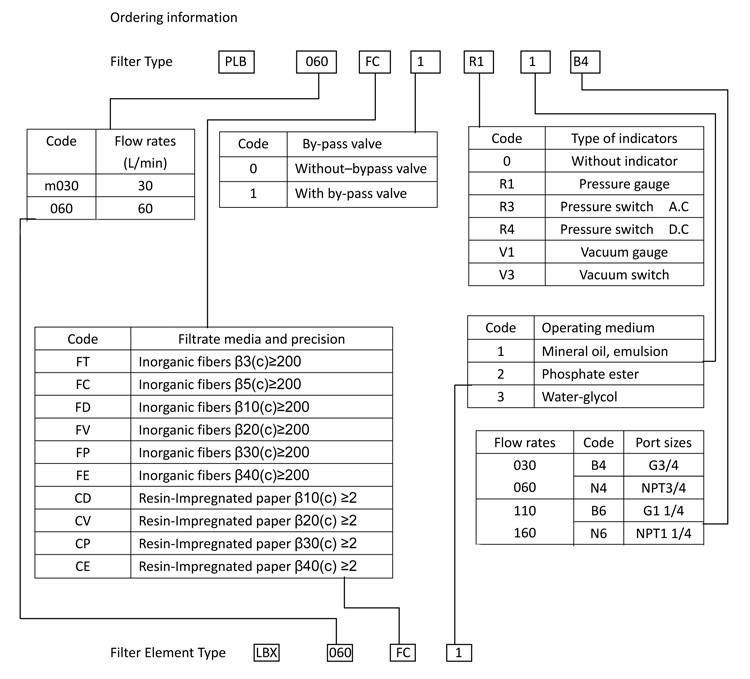

Type

Housing

Filter element

FT

FC

FD

FV

FP

FE

CD

CV

PLB030

0.15

0.72

0.58

0.45

0.41

0.36

0.32

0.48

0.32

PLB060

0.46

0.71

0.56

0.44

0.41

0.37

0.31

0.48

0.32

PLB160

0.18

0.71

0.56

0.44

0.40

0.35

0.31

0.47

0.31

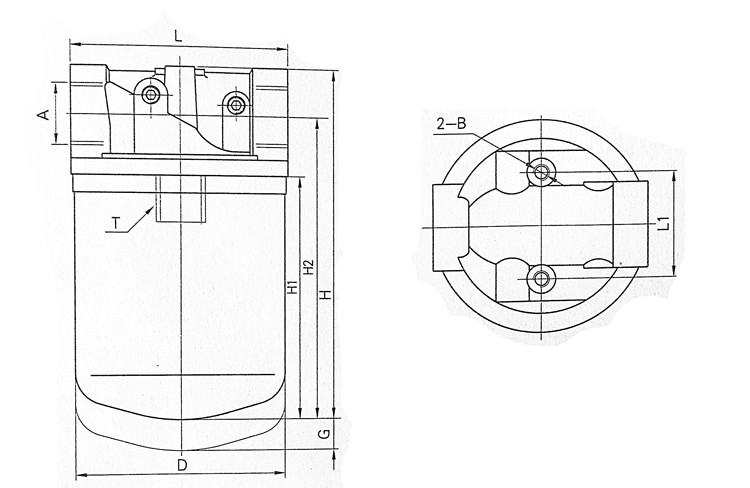

Type

A

H

H1

H2

T

L

L1

D

B

G

Weight(kg)

PLB030

G3/4

NPT3/4

188

145

165

G3/4

1’’-16UN

95

38

96

M8

20

0.8

PLB060

234

191

211

0.9

PLB110

G1 1/4

NPT11/4

248

181

218

G1 1/4

11/2’’-16UN

135

50

129

M8

40

1.8

PLB160

293

266

263

1.9



Our company strictly enforce quality standards

♦ISO4572 hydraulic fluid power-Filter-Mulit-pass method for evaluating filtration performance

♦ISO2941 hydraulic fluid power-Filter elements- Verification of collapse/burst resistance

♦ISO2942Hydraulic fluid power-Filter elements-Verification of fabrication integrity

♦ISO2943Hydraulic fluid power-Filter elements-Verification of material compatibility with fluids

♦ISO3723 Hydraulic fluid power-Filter elements-Method for end load test

♦ISO3724 Hydraulic fluid power-Filter elements-Verification of flow fatigue characteristics

♦ISO3768 Hydraulic fluid power-Filters-Evaluation of pressure drop versus flow characteristics






Company Information



Packaging & Shipping



Our Services



products view



FAQ

Q: Could you calculate the shipping cost for me?

A:Yes, we are honored to do that for you! Before the freight, please well let us know which seaport or airport near your place.

Q:About the samples what services do you offer?

A:If the samples we have stock and the values are not high, we can free offer but the freight need you pay.

If the samples need to custom design, we will collect samples fee (Single product value*4/3).

If the samples values are very low but need custom design, we hope you can buy more than five pieces, the single value not change.

Q:Can you explain your delivery time?

A:Delivery time starting point is our receiving your payment day (usually we need 3-5 days to receive your payment). Such as delivery time 14 days, it means that when we receive you payment, the goods will be deliver after 14 days, the 14 days usually include Sunday exclude the big holidays in china.

Q:Can you accept the processing according to buyer's samples?

A:Yes, we can manufacture according to your samples, also we can manufacture according to your drawing.

Q:Same types of products, why does your prices are low than others?

A:We have our factory, we can save our labor cost and intermediate fees, but our qualities are very guarantee, we are not cheating on workmanship and materials.
