Quick Details

  • Condition: New
  • Type: Press Filter
  • Structure: Cartridge
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Tianrui
  • Model Number: YPH Series
  • Weight: 1~10 KG
  • Dimension(L*W*H): Stardard
  • Certification: ISO9001:2008
  • Warranty: 12 Months
  • After-sales Service Provided: No overseas service provided

Packaging & Delivery

Packaging Details PVC Bag inside,Carton box outside Or Wooden box
Delivery Time 10 days after receive the deposit

      42Mpa YPH Series high pressure inline filter for hydraulic system

Product Description

 Performance and Usage



1.The YPH Series pressure line filters are installed in the hydraulic system pressure pipeline,

to filter solid particles and colloidal substances in medium and effectively control cleanliness.



2.It can be equipped with differential pressure indicator.



Advantage

The YPH series pressure line filter adopt complete machining of steel bar,with high pressure,

beautiful appearance, compact installation, high filtration accuracy, oil-through capacity and so on.



Technical Data

Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper

just for mineral oil)

Operating pressure (max): 42MPa

Operating temperature:- 25℃~110℃

Indicating pressure drop: 0. 7MPa

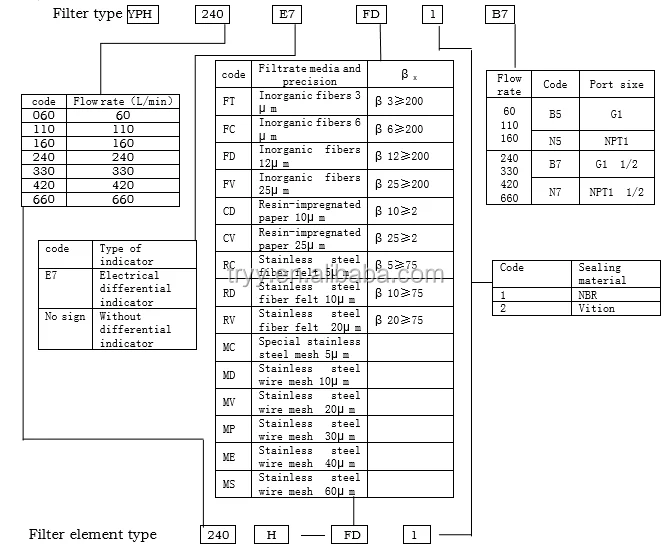

Ordering information

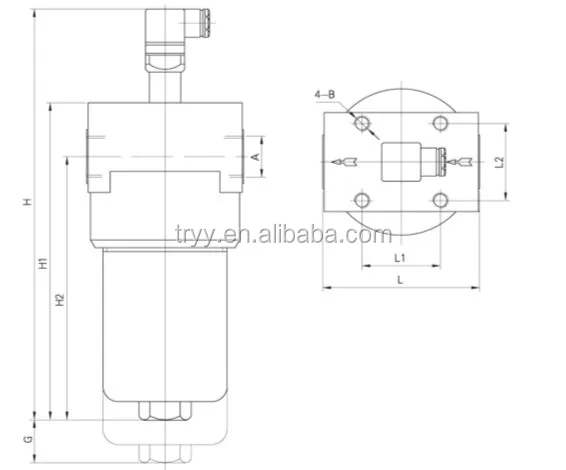

Drawing

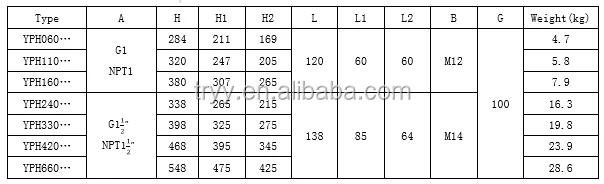

Dimensions

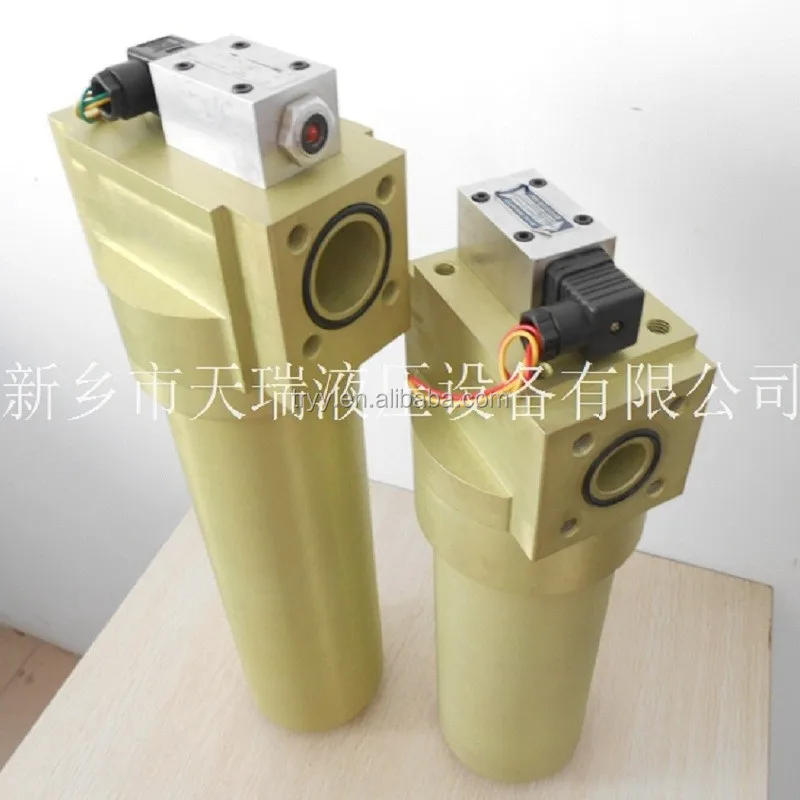

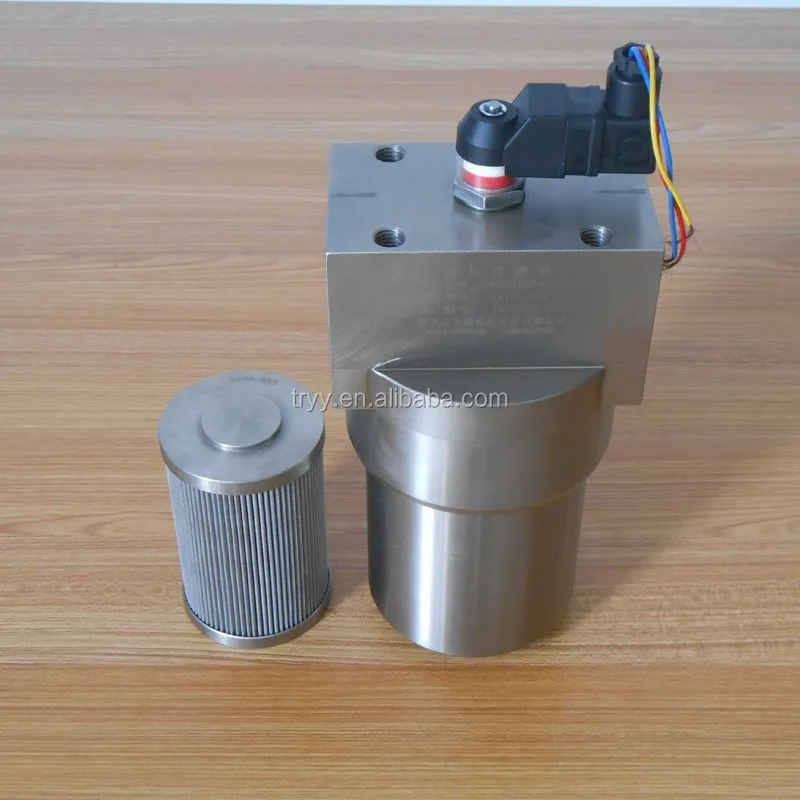

YPH Series high pressure inline filter photos for your ref



Company Information

Xinxiang Tianrui Hydraulic Equipment Co.,ltd has specialized in manufacturing filter equipment

15 years.Our filters has been certified by ISO9001:2008.

Our industrial filter element are widely used in Machinery,Aviation,Railway,Power plant,Steel industry,

Chemicals and Textile etc



Company Strength

Professional technical data systems guaranteed the correctness of filter.

Filtration Specialists with 15 years experience.

OEM Service for you and satisfy different markets demand.

Carefully Test before delivery.

Quality guaranteed by ISO 9001:2008

Vendors for Eaton Filtration China Branch.



Our Services

1.Consulting Service and finding solution for any problems in your industry.

2.Designing and manufacturing as your request.

3.Analyze and make drawings as your pictures or samples for your confirmation.

4.Warm welcome for your business trip to our factory.

5.Perfect after-sales service to manage your quarrel





Packaging & Shipping





Certifications





Related products

We supply the following pressure line filter:

16 bar Low pressure fuel filter

16 bar Low pressure return line filter

Low pressure inline filter

110 bar Medium pressure line filter

210 bar Medium pressure line filter assembly

420 bar High pressure line filter Tank mounted

Tell us the following datas,we will recommend to you suitable pressure filter

Working flow .

Working pressure.

Filtration rating

Working media
