YPM Series 210Bar Pressure pipe Line Filter for emulsion

FOB Reference Price:Get Latest Price
US $14-650 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Press Filter
Structure:
Cartridge
Place of Origin:
Henan, China (Mainland)
Brand Name:
Tianrui
Model Number:
YPM Series
Weight:
1~10 KG
Dimension(L*W*H):
Stardard
Certification:
ISO9001:2008
Warranty:
1 Year
After-sales Service Provided:
No overseas service provided
Application:
Hydraulic System
Packaging & Delivery
Packaging Details
Standard packing
Port
TIANJIN
Lead Time :
7 DAYS

           YPM Series 210Bar Pressure pipe Line Filter for emulsion

420 bar Hydraulic pressure system PHA 030 high pressure inline oil filter strainer

PMA110 series hydraulic 110 bar medium pressure line filter

Product Description



TECHNICAL DATA

Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated

paper just for mineral oil)

Operating pressure (max): 21MPa       Operating temperature:- 25°C~110°C

Indicating pressure drop: 0. 5MPa    By-pass valve unlocking pressure: 0.6MPa

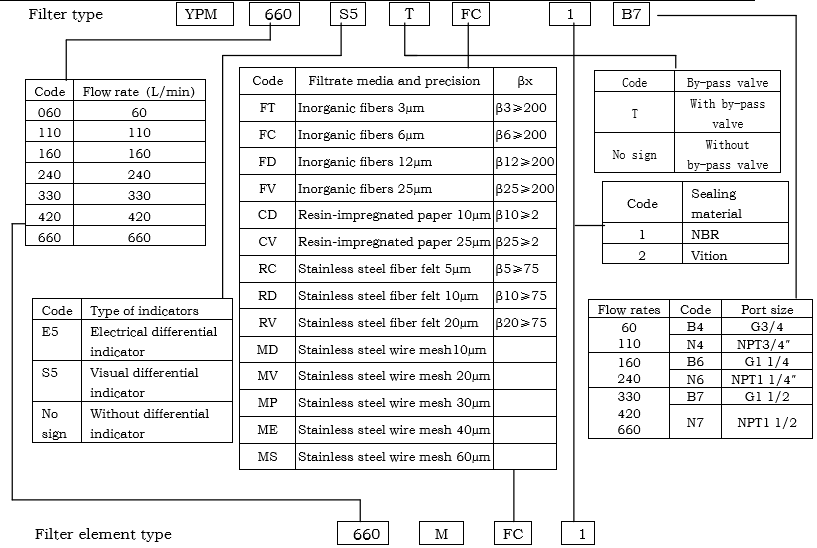

ODERING INFORMATION

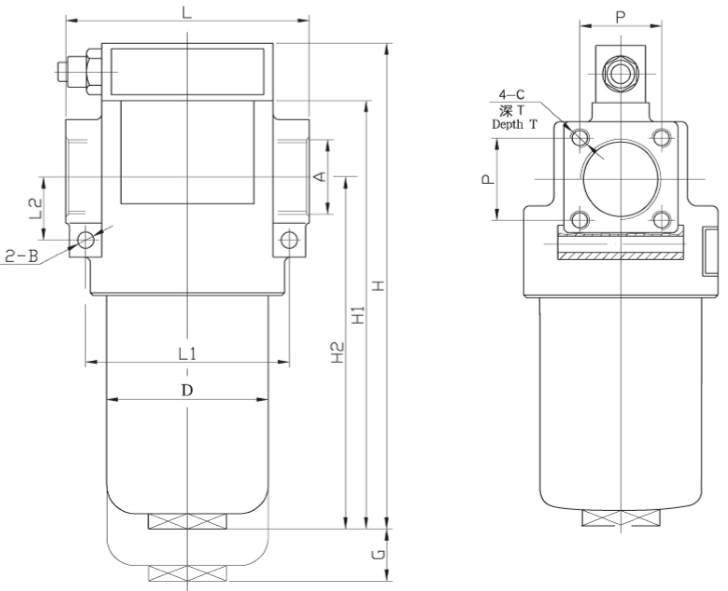

Drawing



Dimensions

Type

A

H

H1

H2

L

L1

L2

B

D

G

P

T

C

Weight(Kg)

YPM060…

G3/4

NPT3/4

198

168

137

110

84

25

Φ8.5

Φ68

100

34

14

M8

1.3

YPM110…

268

238

207

2.1

YPM160…

G1      ″

NPT1      ″

254

224

184

128

107

33

Φ8.5

Φ85

100

43

16

M10

2.9

YPM240…

314

284

244

4.1

YPM330…

G1      ″

NPT1      ″

315

285

241

162

134

42

Φ10.5

Φ110

100

52

16

M12

5.8

YPM420…

395

365

321

11.3

YPM660…

497

467

423

18.6

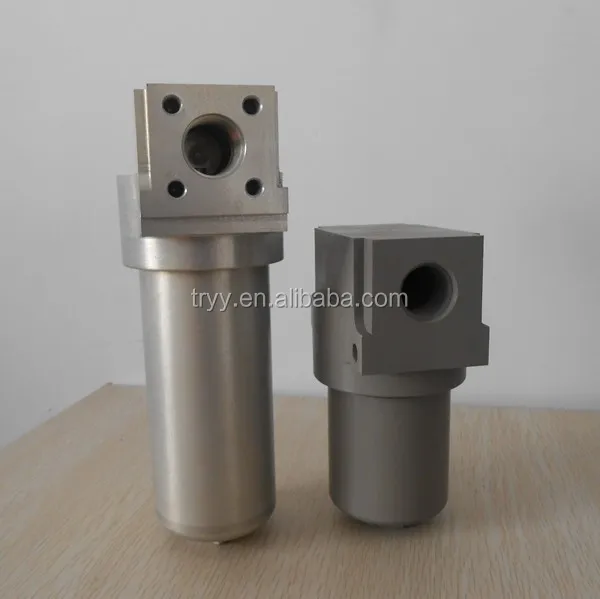

 210Bar Pressure pipe Line Filter and element Photos for your ref

Related products

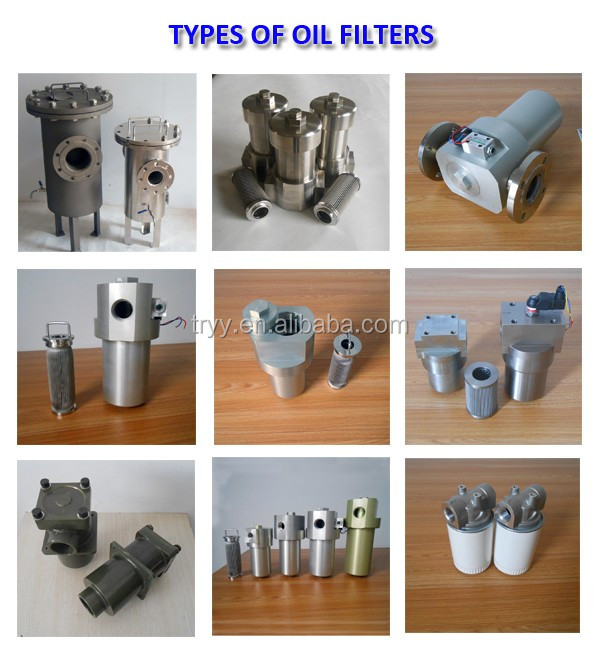

We also supply the following filter housings:

1.6 Mpa Low pressure fuel filter strainer

1.6 Mpa Low pressure return oil filter strainer

160Bar Low pressure in line oil filter housing

11Mpa Medium pressure line filter

42 Mpa High pressure line filter housing

Tell us the following datas,we will recommend to you suitable pressure filter

Working flow .

Working pressure.

Filtration rating

Working media
