China oil filter manufacture high pressure PHA series bypass oil filter

FOB Reference Price:Get Latest Price
US $120-510 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Press Filter
Structure:
Cartridge
Place of Origin:
Henan, China (Mainland)
Brand Name:
Tianrui
Model Number:
PHA series
Power(W):
bypass oil filter
Weight:
according to the size
Dimension(L*W*H):
standard
Certification:
ISO9001:2008
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
SupplyAbility
SupplyAbility:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton/wooden or as your request
Port
Shanghai/Tianjin or other port
Lead Time :
Shipped in 10 days after payment

                          China oil filter manufacture high pressure PHA series  bypass oil filter

Product Description

It is installed in the hydraulic pressure system to filter solid particle and

slimes in medium and effectively control cleanliness.

Technical data

Operating medium mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)
Operating pressure (max) 42MPa
Operating temperature - 25°C~110°C
Indicating pressure drop 0. 5MPa
By-pass valve unlocking pressure 0.6MPa


inorganic fiber, resinimpregnated paper,

stainless steel sinter fiber web,

stainless steel wire mesh.

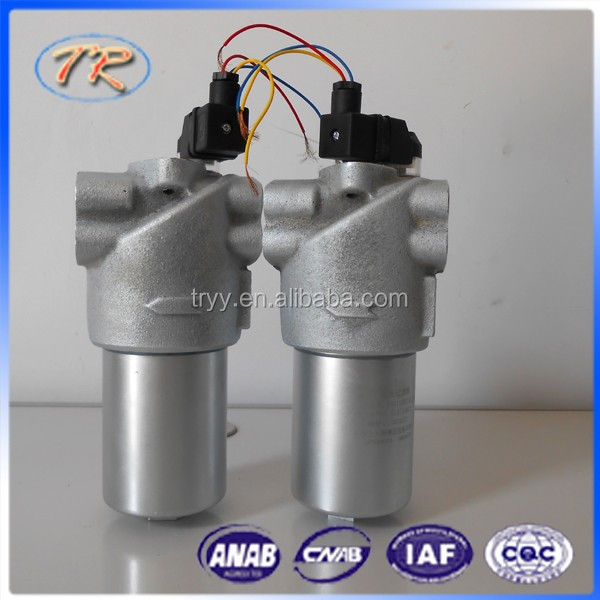

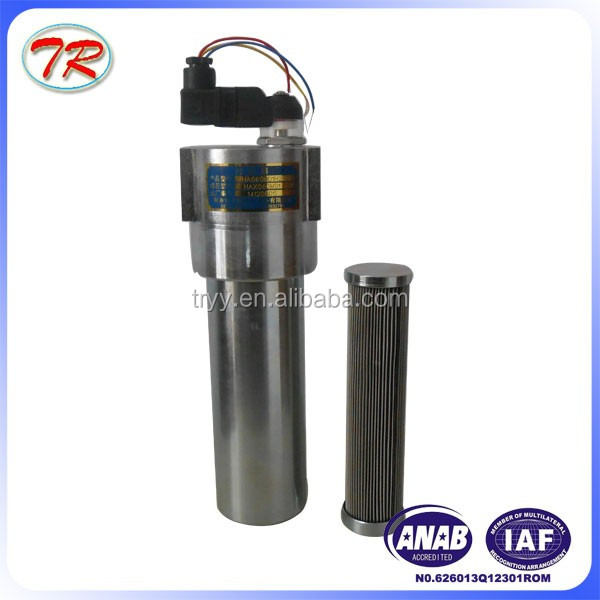

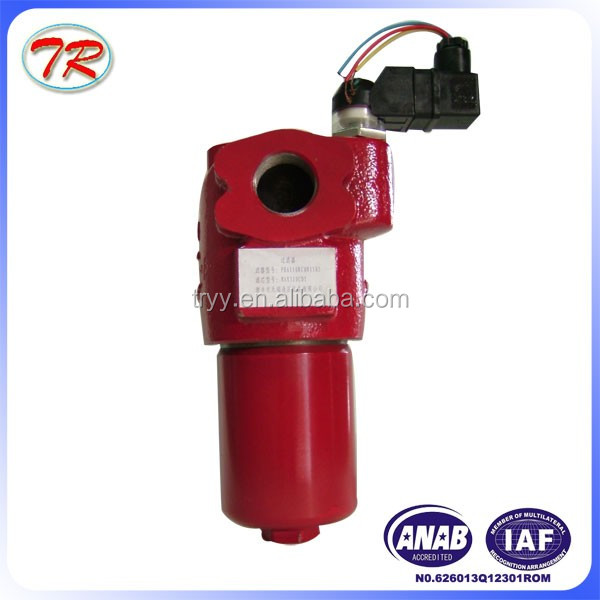

Detailed Images

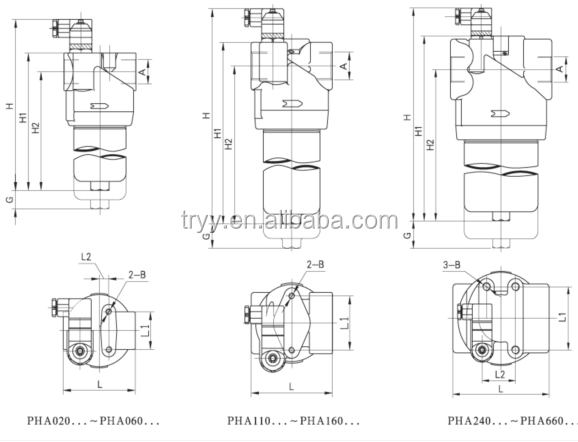

there is design and size

Type

A

H

H1

H2

L

L1

L2

B

G

Weight(kg)

020

G1/2  NPT1/2  M22×1.5

G3/4  NPT3/4  M27×2

208

165

142

85

46

12.5

M8

100

4.4

030



238

195

172











4.6

060



338

295

272











5.2

110

G3/4  NPT3/4  M27×2

G1    NPT1    M33×2

269

226

193

107

65

---

M8



6.6

160



360

317

284











8.2

240

G1    NPT1    M33×2

G1″ NPT1″ M42×2

G1″ NPT1″ M48×2

287

244

200

143

77

43

M10



11

330



379

336

292











13.9

420



499

456

412











18.4

660



600

557

513











22.1

more filter housing

1,    Low Pressure Fuel Filter -RYL,RYLA Series

2,    Pressure Line Filter -YPH Series

3,    Pressure Line Filter -PHA/B/C/D

4,    Pressure Line Filter -YPM Series

5,    Pressure Line Filter -PMA Series

6,    Low Pressure Return Filter -YPL Series

7,    Low Pressure Line Filter -PLA Series

8,    Tank Suction Filter -WU Series

9,   The core pulling  pressure line filter-FMQ series

If you need pressure line filter, following data need to be noted:

A.Working media.

B.Working flow .

C.Working pressure.

D.Filtration rating

Proper line strainer will be suggested to you or design according to your request.

other related filter housing



Company Information

We Xinxiang Tianrui Hydraulic Equipent Co.,Ltd are filters manufacturer located in Xinxiang City, Henan Province,China.

We have More than 10 years experience in filtration industry,malinly products are replacement filter element  & high/low pressure filter& locomotive filter & oil purifier , Widely used in aviation, aerospace, railway, mining machinery, metallurgy, chemical industry, machinery manufacturing, etc .Already get ISO9001: 2008 certification.

company advantage

uSpeciallists for industrial filters for almost 10 years,widely used  in power  plant,Steel plant,Coal Mining, Construction Mining etc.

OEM Service for hydraulic filters or other types of industrial filters.

Manufacture as you request.

Samples and small order are allowed.

Perfect after-sale service team and any mistakes will be charged by us.

Certifications



Customer visiting



Packaging & Shipping



contact

If you need filter element and filter housing,

Contact me please!
