PMA110 series hydraulic 110 bar medium pressure line filter

FOB Reference Price:Get Latest Price
US $30-998 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Press Filter
Structure:
Cartridge
Place of Origin:
Henan, China (Mainland)
Brand Name:
Tianrui
Model Number:
PMA110 series
Weight:
1-50kg
Dimension(L*W*H):
115*242mm(can be customized)
Certification:
ISO9001:2008
Warranty:
12 Months
After-sales Service Provided:
Overseas service center available
Working medium:
mineral oil,emulsion,water-glycol,phosphate ester hydraulic fluid
Working pressure(max):
11MPa
Working temperature:
-25~110℃
Sender pressure:
0.5MPa
Bypass valve opening pressure:
0.6MPa
SupplyAbility
SupplyAbility:
2500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Factory standard carton/wooden case packing , or as your requirements.
Port
Tianjin or other ports
Lead Time :
10 days after receive the deposit

PMA110 series hydraulic 110 bar medium pressure line filter

Product Description

DESCRIPTION

High pressure line filter is installed in the hydraulic pressure system to filter solid particle

and slimes in medium and effectively control cleanliness.



TECHNICAL DATA

Operating medium:mineral oil, emulsion, water-glycol, phosphate ester (resin-im

pregnated paper just for mineral oil)

Operating pressure (max): 11MPa

Operating temperature: -25℃~110℃

Indicating pressure drop: 0. 5MPa

By-pass valve unlocking pressure: 0.6MPa

Filter element material:Glass fiber,filter paper,stainless steel sinter fiber web,

stainless steel wire mesh

Filter vessel material:cast in aluminum

Filter rating:3-40 micron

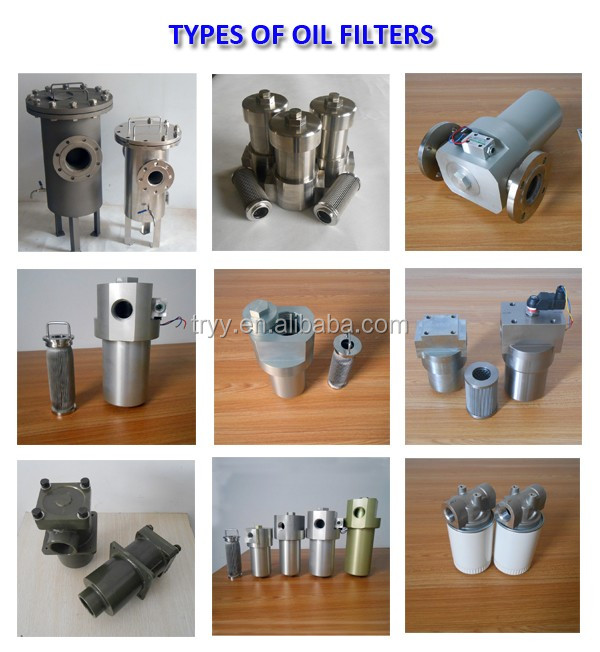

medium pressure line filter photos for your ref



Company Information

110 bar medium pressure line filter---Company introduction

Xinxiang Tianrui Hydraulic Equipment Co.,ltd has specialized in manufacturing filter

equipment 15 years.Our filters has been certified by ISO9001:2008.Our industrial filter

element are widely used in Machinery,Aviation,Railway,Power plant,Steel industry,

Chemicals and Textile etc



Featured products as following:

Hydraulic line filter strainers and elements;

Filter element cross reference;

Air compressor filters element replacement;

Industrial air filter bag,filter box,filter panel;

Aviation fuel filter and hydraulic filter;

Diesel locomotive filters for railway;

Dust collector filters cartridge;

Stainless steel sintered felt filter cartridge and filter disc;

Notched wire filter element

Our Services



1.Consulting Service and finding solution for any problems in your industry.

2.Designing and manufacturing as your request.

3.Analyze and make drawings as your pictures or samples for your confirmation.

4.Warm welcome for your business trip to our factory.

5.Perfect after-sales service to manage your quarrel



Packaging & Shipping

Certifications

Related products

 We supply the following pressure line filter:

16 bar Low pressure fuel filter

16 bar Low pressure return line filter

Low pressure inline filter

110 bar Medium pressure line filter

210 bar Medium pressure line filter assembly

420 bar High pressure line filter Tank mounted





Tell us the following datas,we will recommend to you suitable pressure filter



Working flow .

Working pressure.

Filtration rating

Working media



Want more information? Please don't Hesitate! Let's talk the details online or by email !
