Quick Details

  • Condition: New
  • Type: Press Filter
  • Structure: Cartridge
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Tianrui
  • Model Number: PLA series
  • Weight: 1~10 KG
  • Dimension(L*W*H): Stardard
  • Certification: ISO9001:2008
  • Warranty: 12 Months
  • After-sales Service Provided: No overseas service provided
  • Working medium: mineral oil,emulsion,water-glycol,phosphate ester hydraulic fluid
  • Working pressure(max): 1MPa
  • Working temperature: -25~110℃
  • Sender pressure: 0.15MPa
  • Bypass valve opening pressure: 0.03MPa

Packaging & Delivery

Packaging Details Factory standard packing , or as your requirements.
Delivery Time 12 business days after received payment.

PLA160 low pressure line filter for hydraulic system pressure line

RYL series Aerospace industry low pressure fuel filter housing

110 Bar Medium pressure Filter PMA030 Hydraulic Industry oil Filter Housing

420Bar High pressure Mineral oil ,Water-glycol filtrator for hydraulic system

Product Description



DESCRIPTION

Tank Mounted Low pressure line filter is installed in the low pressure, suck or return

pipeline of hydraulic system to filter solid particle and slimes in medium and effectively

control cleanliness.



Filter element adopts many kinds of materials, such as inorganic fiber,

Resin-impregnated paper, stainless steel wire mesh.



Filter vessel is cast in aluminum and steel rolling, has small volume, small weight,

compact construction and nice looking figure.



TECHNICAL DATA

Operating medium:mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated

paper just for mineral oil)

Operating pressure (max): 1MPa

Operating temperature: -25℃~110℃

Indicating pressure of pressure switch: 0.15MPa

Indicating pressure of vacuum pressure switch: 0.03MPa 3

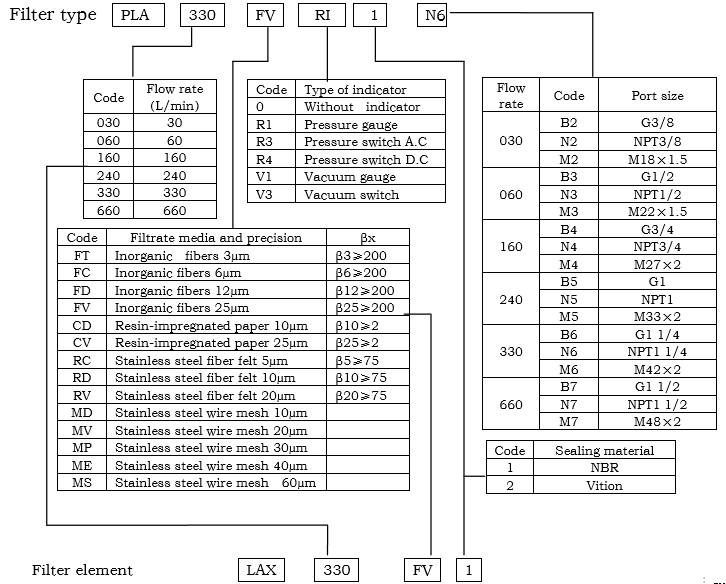

Ordering information

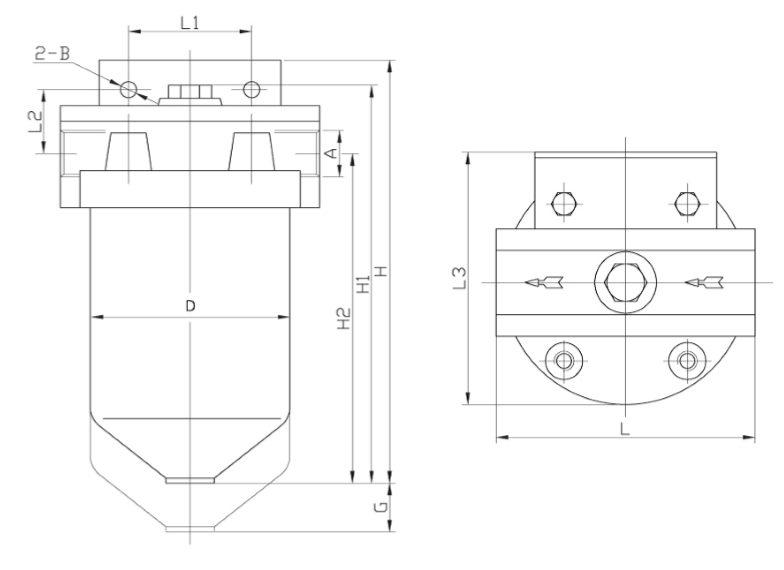

Drawing

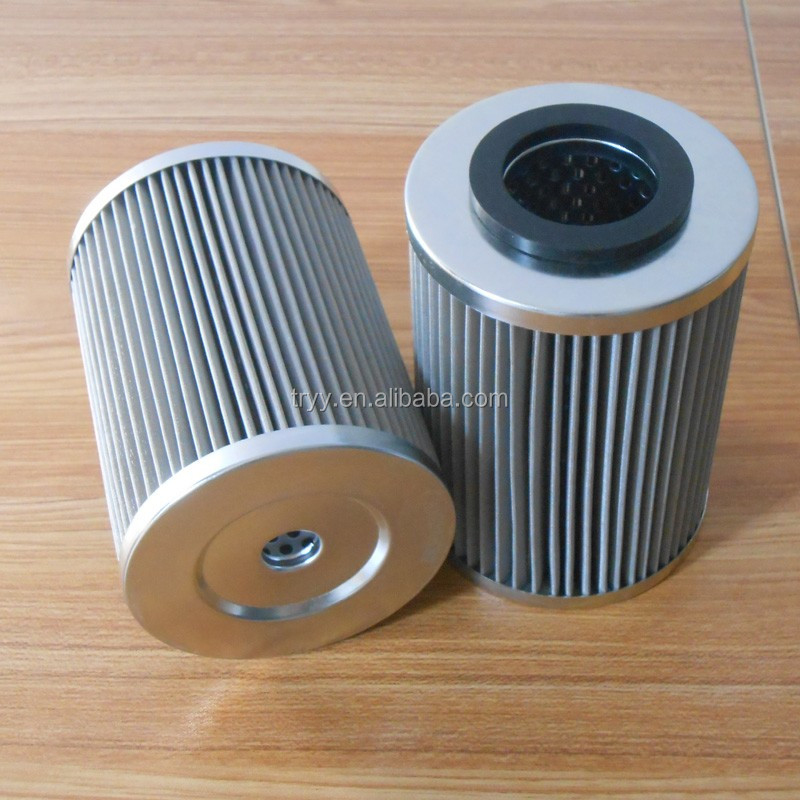

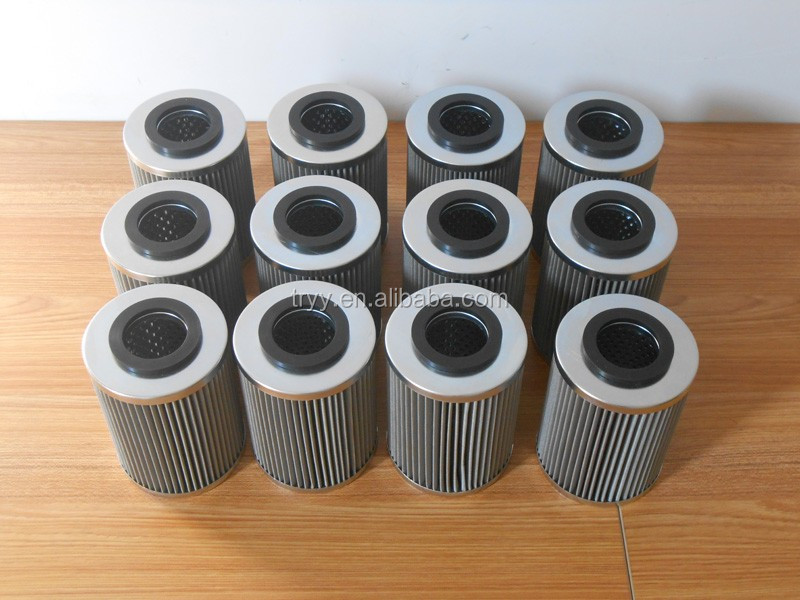

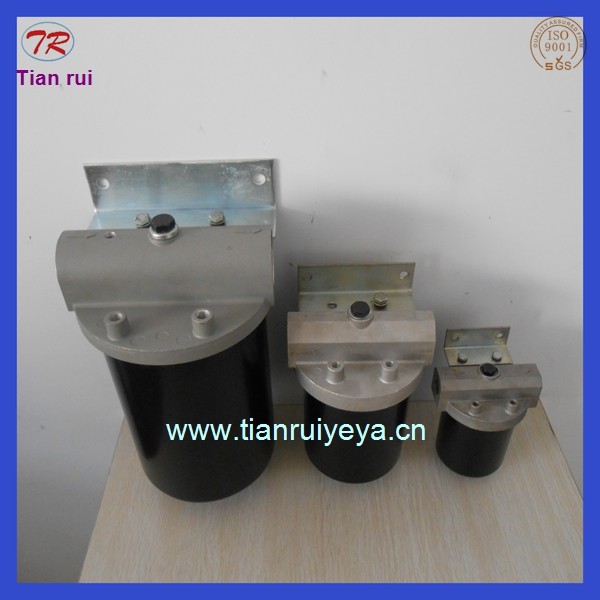

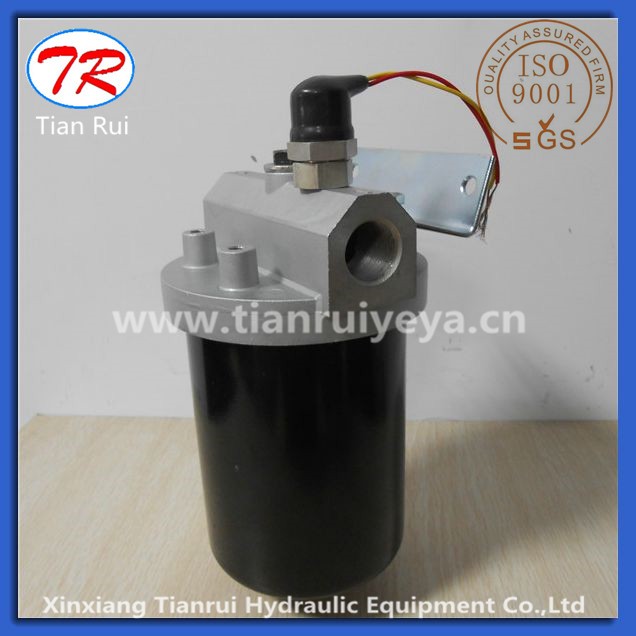

 low pressure line filter and filter element photos

Company Information



Product list



Packaging & Shipping



Certifications

We supply the following pressure line filter:

16 bar Low pressure fuel filter

16 bar Low pressure return line filter

Low pressure inline filter

110 bar Medium pressure line filter

210 bar Medium pressure line filter assembly

420 bar High pressure line filter Tank mounted

Tell us the following datas,we will recommend to you suitable pressure filter

Working flow .

Working pressure.

Filtration rating

Working media
