Medium pressure pipeline filter for Heavy Equipment

FOB Reference Price:Get Latest Price
US $93-1,020 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Hydraulic Filters
Model Number:
YPM
Brand Name:
Tianrui
Place of Origin:
Henan, China (Mainland)
Shell material:
aluminum,carbon steel
Filter element material:
Stainless steel mesh,Stainless steel fiber sintering medium
Other material:
composite fibre,kapok case-hardened filter paper
Working medium:
grease,fuel oil,phosphate ester hydraulic oil or gasoline
Working prssure:
1~42MPa
Working temperature:
-55~200℃
Filtration:
1~100μm(as customer requirements)
Pressure sender:
can be installed
Bypass valve:
can be installed
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Factory standard carton packing, or as customer reuqirements.
Port
Tianjin or other ports

                           Medium pressure pipeline filter for Heavy Equipment

Product Description

DESCRIPTION

It is installed in the hydraulic pressure system to filter solid particle and slimes in medium and

effectively control cleanliness.

Differential pressure indicator and by-pass valve can be assembled according to actual requirement.

Filter element adopts many kinds of materials, such as glass fiber, filter paper,stainless steel

sinter fiber web, stainless steel wire mesh.

Filter vessel is cast in aluminum and has small volume, small weight, compact construction and

nice looking figure.



TECHNICAL DATA

Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper

just for mineral oil)

Operating pressure (max): 21MPa

Operating temperature:- 25℃~110℃

 Indicating pressure drop: 0. 5MPa

By-pass valve unlocking pressure: 0.6MPa



Ordering informations



Drawing

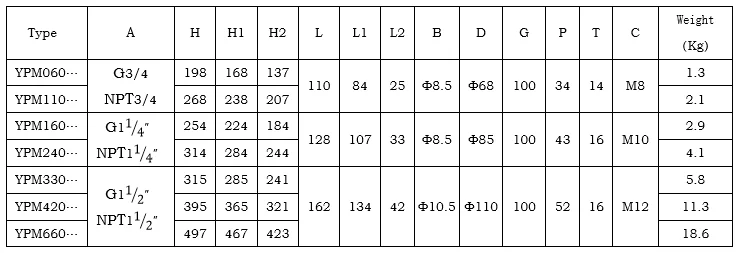

Dimensions

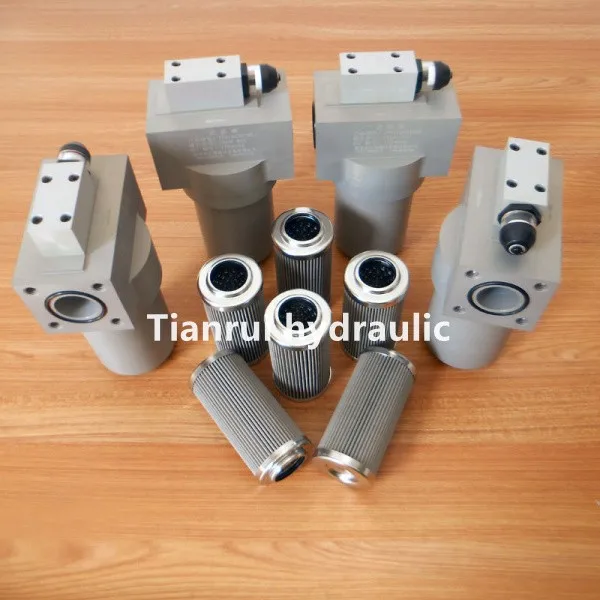

Medium pressure pipeline filter photos



Company Information

Xinxiang Tianrui Hydraulic Equipment Co.,ltd has specialized in manufacturing filter

equipment for 15 years.



Our featured products are as following:
Hydraulic line filter strainers and elements;
Filter element cross reference;
Air compressor filters element replacement;
Industrial air filter bag,filter box,filter panel;
Aviation fuel filter and hydraulic filter;
Diesel locomotive filters for railway;
Dust collector filters cartridge;
Stainless steel sintered felt filter cartridge and filter disc;
Notched wire filter element



Product Application field:Machinery,Aviation,Railway,Power plant,Steel industry,Chemicals,
Textile,metallurgy industry,electronic industry,pharmaceutical industry, petroleum gasification,
thermal power,nuclear power, etc.



Packaging & Shipping



Certifications

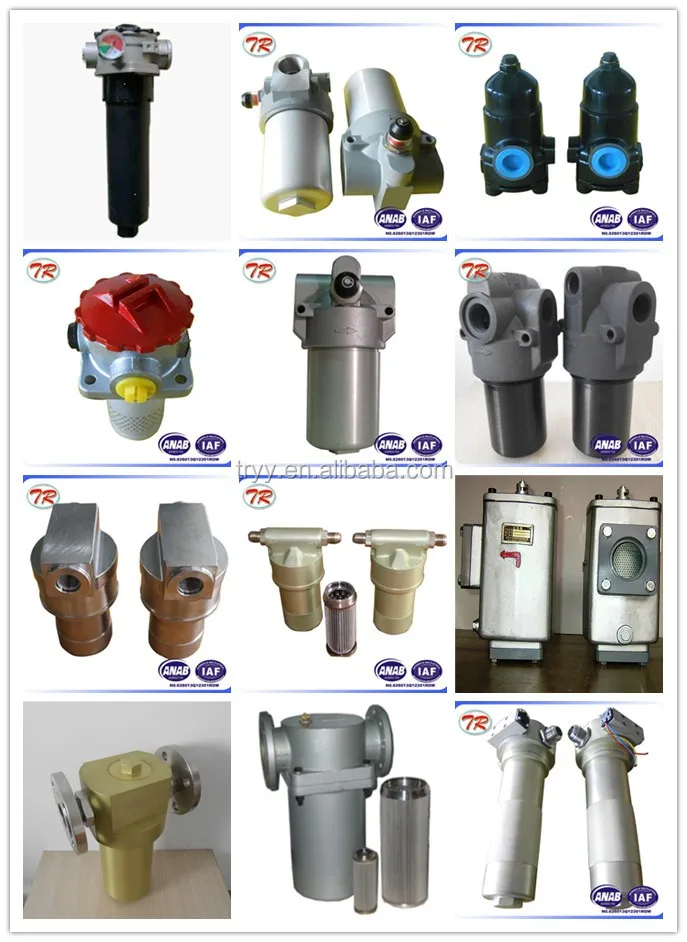

Related products

We supply the following pressure line filter:

16 bar Low pressure fuel filter

16 bar Low pressure return line filter

Low pressure inline filter

110 bar Medium pressure line filter

210 bar Medium pressure line filter assembly

420 bar High pressure line filter Tank mounted

Tell us the following datas,we will recommend to you suitable pressure filter

Working flow .

Working pressure.

Filtration rating

Working media

Contact

Any interests please don't hesitate to contact me





FAQ

Q:Are you factory or trading company?

A:We’re factory with many years designing and manufacturing experiences.



Q:Will you provide samples?

A:Yes, but you need to pay for freight cost.



Q:Can i make the payment online?

A:Yes. You can direct make an order and pay it through Alibaba.



Q:Do you have warranty?

A:The filter’s warranty is one year. When it starts work, the lifetime depends on the working environment (like pressure, temperature, and particle /dust content etc)



Q:May you do OEM Service?

A:Yes.
