Quick Details

  • Condition: New
  • Type: Return Filter, Hydraulic Filters
  • Structure: Cartridge
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Tianrui
  • Model Number: PHA series
  • Weight: 1~10 KG
  • Dimension(L*W*H): Stardard
  • Certification: ISO9001:2008
  • Warranty: 12 Months
  • After-sales Service Provided: No overseas service provided
  • Shell material: aluminum,carbon steel
  • Filter element material: Stainless steel mesh,Stainless steel fiber sintering medium
  • Other material: composite fibre,kapok case-hardened filter paper
  • Working medium: grease,fuel oil,phosphate ester hydraulic oil or gasoline
  • Working prssure: 1~42MPa
  • Working temperature: -55~200℃
  • Filtration: 1~100μm(as customer requirements)
  • Pressure sender: can be installed
  • Bypass valve: can be installed

Packaging & Delivery

Packaging Details Factory standard carton packing, or as customer reuqirements.
Delivery Time shipped in 10 working days

                                 Return oil filter assembly with filter element

Product Description

DESCRIPTION

It is installed in the hydraulic pressure system to filter solid particle and slimes in medium

and effectively control cleanliness.

Its configuration and connect form convenient for other hydraulic pressure element

integration assemblage.

Differential pressure indicator and by-pass valve can be assembled according to

actual requirement.

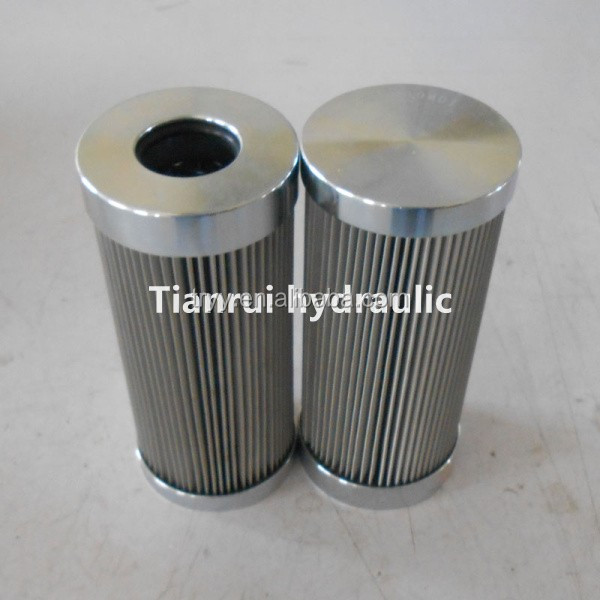

Filter element adopts many kinds of materials, such as inorganic fiber, resin-impregnated

paper, stainless steel sinter fiber web, stainless steel wire mesh.

Filter vessel is made of steel-stick, and has nice looking figure.

TECHNICAL DATA

Operating medium: mineral oil, emulsion, water-glycol, phosphate ester

(resin-impregnated paper just for mineral oil)

Operating pressure (max): 42MPa

Operating temperature:- 25℃~110℃

 Indicating pressure drop: 0. 5MPa

By-pass valve unlocking pressure: 0.6MPa

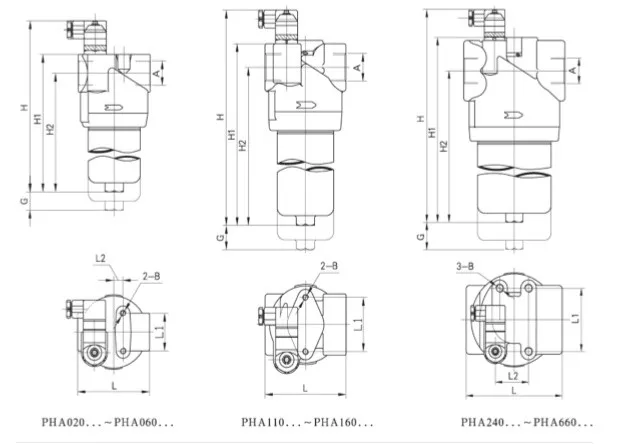

Drawing

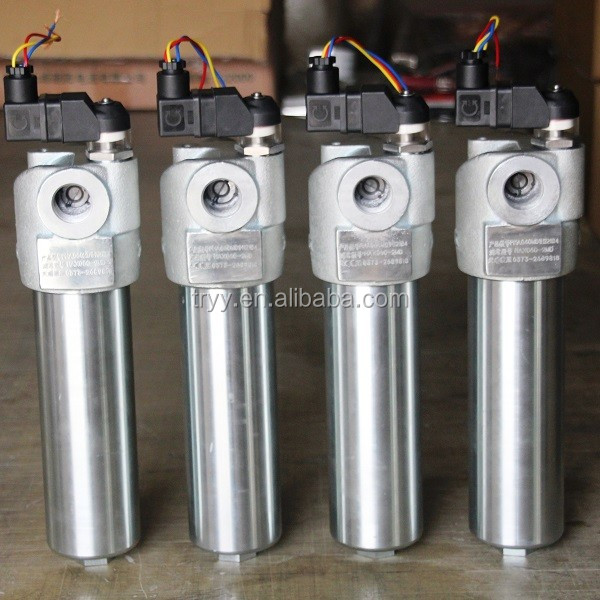

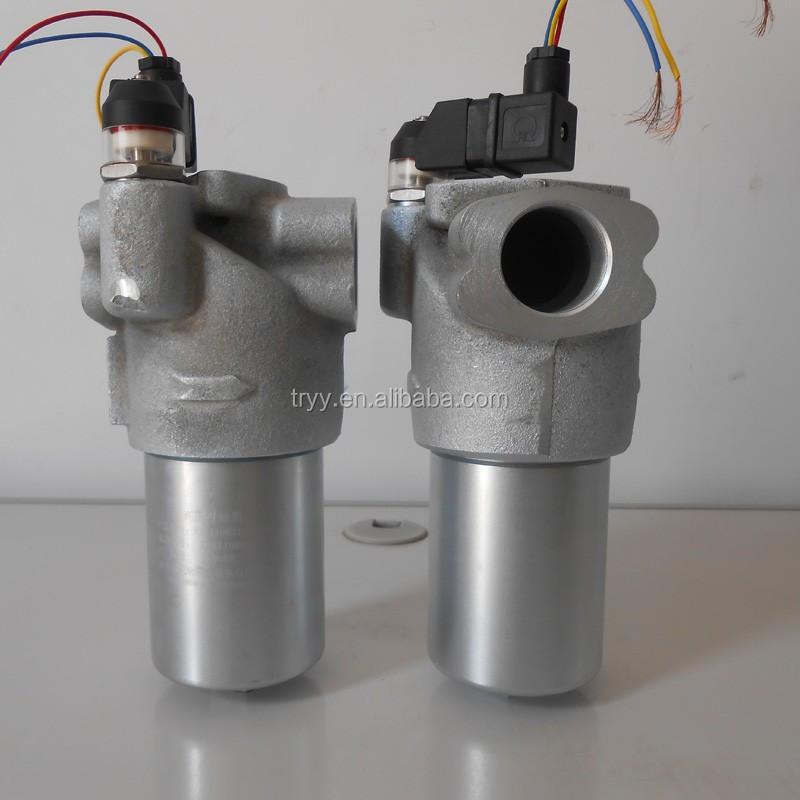

Return oil filter assembly PHOTOS

We supply the following pressure line filter:

16 bar Low pressure fuel filter

16 bar Low pressure return line filter

Low pressure inline filter

110 bar Medium pressure line filter

210 bar Medium pressure line filter assembly

420 bar High pressure line filter Tank mounted

Tell us the following datas,we will recommend to you suitable pressure filter

Working flow .

Working pressure.

Filtration rating

Working media

Company Information

Xinxiang Tianrui Hydraulic Equipment Co.,ltd has specialized in manufacturing filter equipment

15 years.Our filters has been certified by ISO9001:2008.

Our industrial filter element are widely used in Machinery,Aviation,Railway,Power plant,

Steel industry,Chemicals and Textile etc



Company Strength.

Professional technical data systems guaranteed the correctness of filter.

Filtration Specialists with 15 years experience.

OEM Service for you and satisfy different markets demand.

Carefully Test before delivery.

Quality guaranteed by ISO 9001:2008

Vendors for Eaton Filtration China Branch.



Product list

Featured products
Hydraulic line filter strainers and elements;
Filter element cross reference;
Air compressor filters element replacement;
Industrial air filter bag,filter box,filter panel;
Aviation fuel filter and hydraulic filter;
Diesel locomotive filters for railway;
Dust collector filters cartridge;
Stainless steel sintered felt filter cartridge and filter disc;
Notched wire filter element



Packaging & Shipping



Certifications



Contact

Any interests please don't hesitate to contact me
